Minarik Drives MM23001C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

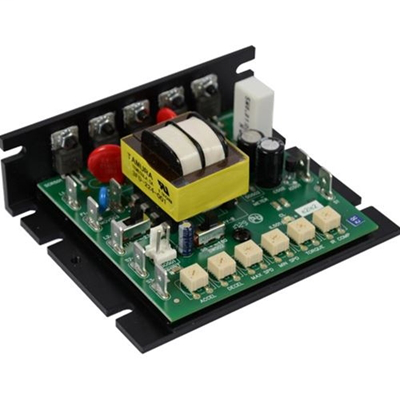

The MM23001C drive is a reliable and cost-effective solution for controlling your permanent magnet or shunt-wound DC motors in variable-speed applications. It uses SCR's to provide full-wave rectification of the AC line input. This dual voltage drive operates using 115 VAC or 230 VAC, 50/60 Hz, to operate 90 or 180 VDC SCR brush-type motors from 1/8 to 2 HP. Packaged in a compact footprint, this user-friendly drive possesses diagnostics and options to accommodate user needs.MM2 Series MM23001C MM23000C Series
Minarik Drives MM23001C is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 1.37 Form Factor
- 1% Base Speed Regulation
- 601 Speed Range
- Maximum Speed
- Deceleration
- Current Limit
- Diagnostic LEDs
- Current Limit
- Field Supply
- Voltage output to energize the field winding of a shunt-wound motor
- Minimum Speed
- Acceleration
- MM Footprint
- Traditional MM mounting pattern and footprint
- Stopping Modes
- Inhibit (N.O.) for coasting to a stop. Can be used for frequent starting and stopping
Specifications
- Braking Type
- null
- Continuous Current
- 10 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- null
- Technology Type
- SCR
