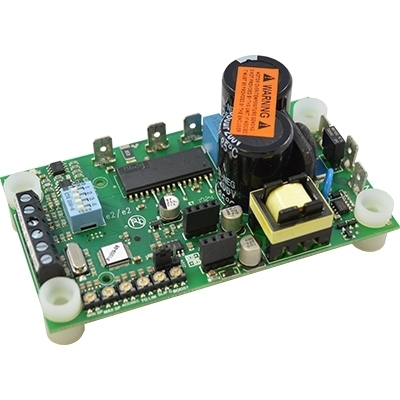

Minarik Drives ACF700-0.65-00MD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The ACF series is a microprocessor based variable frequency drive. The user adjustable trim pots allow the user to setup the drive similar to a DC motor control, meaning quick and easy installation without any of the programming typically associated with VFDs. ACF series drives control 115 or 230 VAC motors, single or three phase, with either a 115 or 230 VAC single phase input. This is because the ACF drive is equipped with a voltage doubling capability that allows you to run a 230 VAC motor when only a 115 VAC single phase power is available. The drive’s internal carrier frequency can easily be changed from 16kHz to 1.6kHz to minimize switching losses or reduce electrical interference. Stopping methods include coast to stop or DC injection braking. Incorporated into the design is a microprocessor which provides flexibility of creating custom programs that can include specific user setting for OEM applications. These full featured and compact AC drives are the perfect choice to run any 3 phase and some single phase motors.ACF Series ACF700-0.65-00MD
Minarik Drives ACF700-0.65-00MD is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 2 or 12 kHz Carrier Frequency
- Maximum Speed
- Adjustable Base Frequency
- Can be set for a base output frequency of 50 or 60 Hz at rated output voltage, regardless of input frequency
- DC Injection Braking
- Fixed 30 VDC for 2 seconds injection for quicker braking
- Diagnostic LEDs
- Power, Status (Undervoltage, Overvoltage, Short Circuit / Current Trip, Overheat Warning, Overheat Trip)
- Doubler / Stop-Down Mode
- Doubles a 115 VAC input to a 230 VAC output. Can also step-down a 230 VAC input to a 115 VAC output at 50/60 Hz
- Microprocessor Based
- Allows custom programming for OEMs
- Minimum Speed
- Acceleration / Deceleration
- MM Footprint and Compact Size
- Traditional MM mounting pattern with smaller footprint uses minimal space
- Thermally Protects
- Drive recognizes when overheated as a result of frequent overload. It first flashes a warning code and will trip if condition persists
- Torque
- Boost
- Variety of Motors
- Permanent Split Capacitor (PSC), Shaded Pole, Synchronous, and 3Ø Induction
Specifications
- Braking Type
- DC Injection
- Continuous Current
- 0.65 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 115 or 230 VAC
- Reversing Type
- Yes
