Mersen Z1006203
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

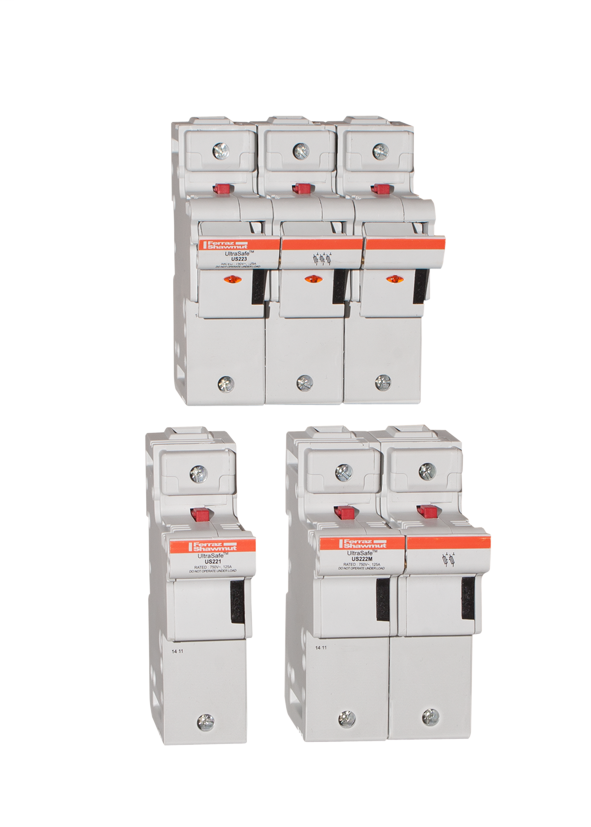

The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe™ range is made of tough and durable thermoplastic or thermoset material.modular fuse holder, UL+IEC, 1P, 22x58, DIN rail mounting, IP20, MS, indicator
Mersen Z1006203 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ampere Rating
- 125
- Body Insulating Material
- Polyamide
- Connection Terminal Material
- Tin-Plated Copper
- Connection Terminal Type
- Clip
- Conventional Free Air Thermal Current With Fuse-Links Ith
- 125 A
- Country Of Origin
- TN
- Degree of protection
- IP20
- Frequency Hz
- 50 ... 60 Hz Hz
- Fuse Installation Method
- Clip-in
- Fuse Size
- 22x58
- Installation Mounting
- DIN rail acc. EN 60715
- Max Fuse Rating
- 125 A
- Max Operating Temp
- 60 °C
- Max Storage Temp
- 80 °C
- Min Operating Temp
- -25 °C
- Min Storage Temp
- -25 °C
- Number Of Poles
- 1-Pole
- Product Brand
- UltraSafe™
- Product Line
- UltraSafe™ US22, Modular fuse-holders
- Rated Impulse Withstand Voltage
- 8
- Rated Insulation Voltage
- 750 V
- Rated Voltage Ac Iec
- 690 V
- Rated Voltage Ac Ul
- 800 V
- Rated Voltage Dc Iec
- 690 V
- Rated Voltage Dc Ul
- 1000 V
- Short Circuit Current Rating Sccr
- 100 kA
- Torque Rating
- 35.4 lb-in
- Wire Connections
- Pressure Plate
- Wire Insulation Rating
- 60/75 C
- Wire Type
- Rigid wire = 1.5-50mm² (16-1AWG) or Multistrand wire = 35mm² (3AWG)
- Wiring Range
- 1/0 - #14
