Mersen W322479
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

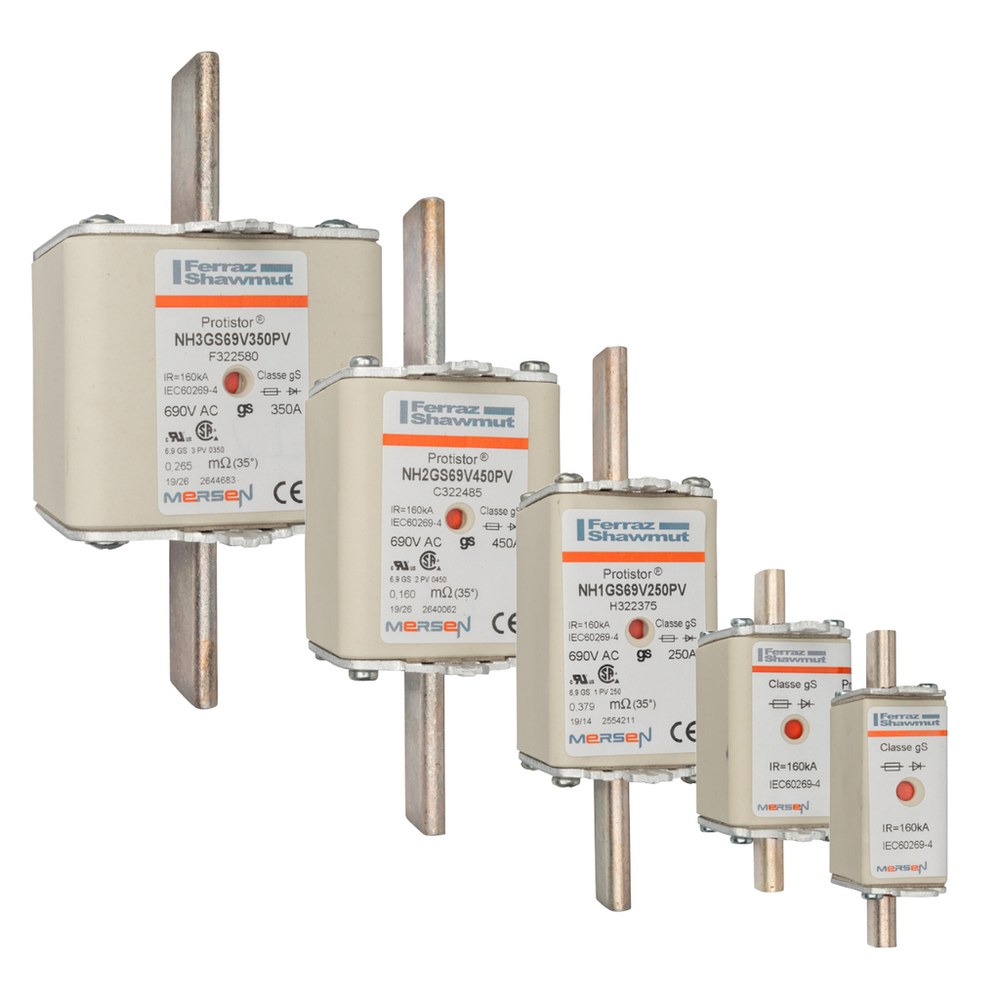

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These NH style fuse-links are defined as per DIN 43620/00 for a worldwide acceptance into NH modular system fuse-holders, fuse switch disconnectors for direct installation. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.Size 2 gS 690VAC gS 315 A 690VAC
Mersen W322479 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Max I R Breaking Capacity I1
- 160 kA
- Ampere Rating
- 315 A
- Body Insulating Material
- Ceramic
- Clearing I2T At Rated Voltage
- 140 kA²s
- Country Of Origin
- TN
- Fuse Size
- NH2
- Melting I2T
- 27.945 kA²s
- Mounting
- Clip
- Power Dissipation At Rated Current Value
- 36 W
- Product Brand
- Protistor®
- Product Line
- Protistor® size NH 000, 00, 1, 2, 3 gS, 690VAC
- Rated Voltage Ac Iec
- 690 V
- Rated Voltage Ac Ul
- 700 V
- Speed Characteristic
- gS
