Mersen U71007
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

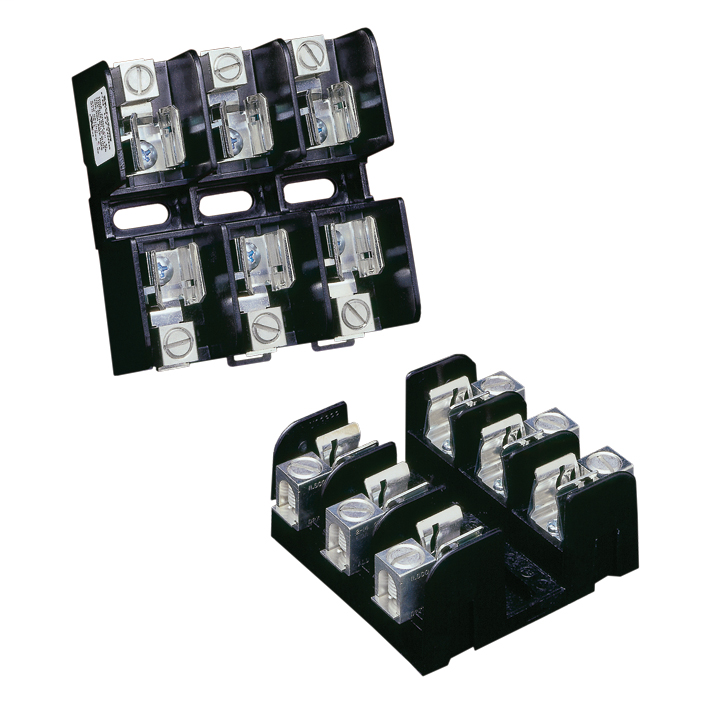

Mersen Semiconductor fuse blocks feature open face styles. Each version is rated 750 volts and accommodates 14 x 51mm or 22 x 58mm IEC Cylindrical fuses. 703, U705 and U710 fuseholders feature Mersen's unique adder-block design which can be assembled onto 1, 2, or 3-pole fuseholders to form multi-pole segmented holders of as many poles as desired. A choice of box, screw, or pressure plate connectors is offered to fit a wide range of standard or solid copper wire. All versions have verified dielectric strength in excess of 2500V. A patented built-in DIN-rail adapter on the U710 blocks adds further design versatility. All fuse clips are made of high conductivity tin-plated copper with spring reinforced clips.Fuse Bases 750V 100A Semiconductor 2-pole Tin-Plated Aluminum Box
Mersen U71007 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ampere Rating
- 100 A
- Body Insulating Material
- Thermoplastic
- Country Of Origin
- MX
- Frequency Hz
- 50/60 Hz
- Fuse Installation Method
- Clip-in
- Installation Mounting
- Screw Mount or DIN Rail
- Max Fuse Rating
- 100 A
- Max Operating Temp
- 80 °C
- Max Storage Temp
- 80 °C
- Min Storage Temp
- -25 °C
- Number Of Poles
- 2-pole
- Product Line
- 750V Open Style Semiconductor Fuseholders - IEC Cylindrical 14x51mm
- Rated Voltage Ac Ul
- 750 V
- Rated Voltage Dc Ul
- 750 V
- Short Circuit Current Rating Sccr
- 200 kA
- Torque Rating
- 35 lb-in
- Wire Connections
- Box
- Wiring Range
- Al/Cu #2-14
