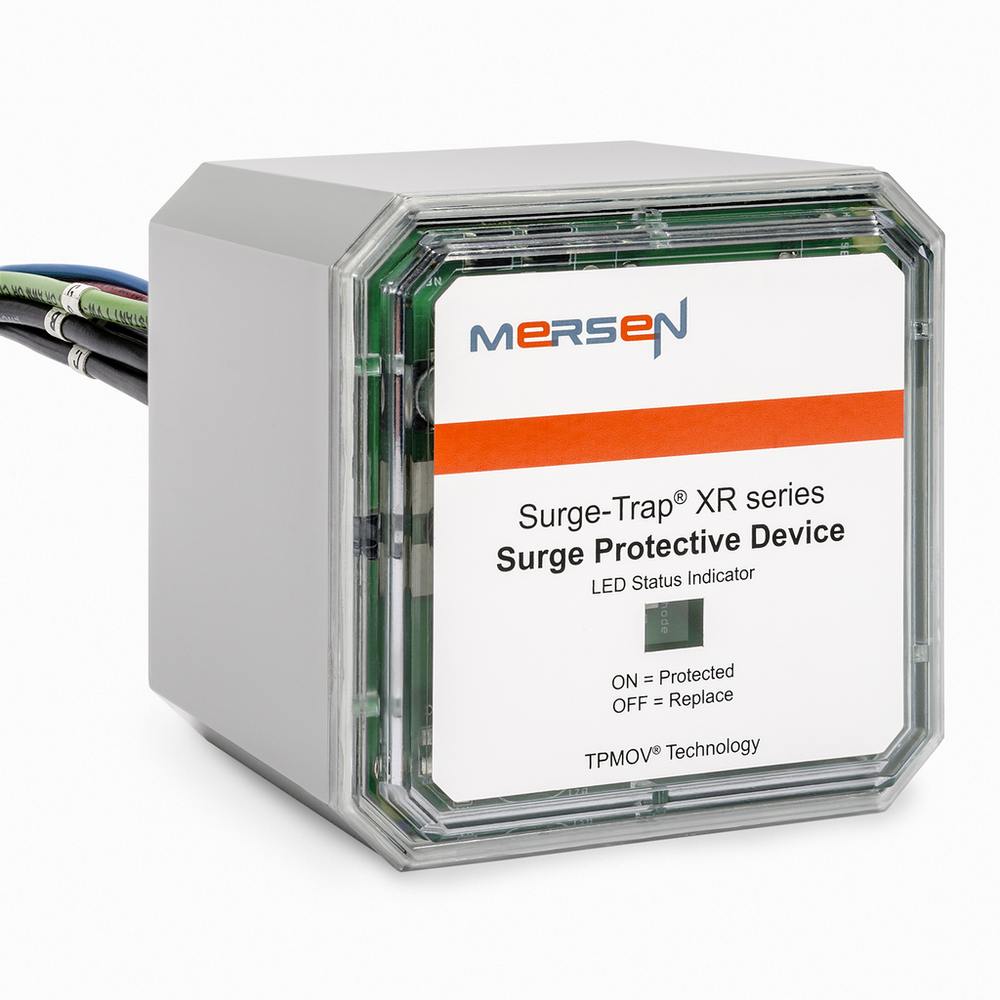

Mersen STXR480D05A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The most popular range in the STX series offering, the Surge-Trap® Type 1 STXR meets requirements for UL1449 4th Edition and is ideal for the replacement of obsolete surge arrestors. The STXR Series SPDs feature TPMOV® technology inside, making them the safest product available. With a small, compact design and line or load installation flexibility, the STXR series is the perfect fit for branch panel and/or individual equipment protection.SPD - Type 1 ST-XR Series 480V L-L VPR 3000V L-L MCOV 1100V 50 kA LED + Remote
Mersen STXR480D05A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Or Dc
- AC
- Country Of Origin
- MX
- Flammability Rating
- UL94-5VA
- Frequency Hz
- 50/60 Hz
- Housing Material
- Polycarbonate
- Installation Mounting
- Panel Mount
- Max Discharge Current Imax 8 20
- 50 kA per phase
- Max Operating Temp
- 85 °C
- Max Storage Temp
- 85 °C
- Mcov L-G
- 550 V
- Mcov L-L
- 1100 V
- Min Operating Temp
- -40 °C
- Min Storage Temp
- -40 °C
- Nominal Discharge Current
- 10 kA
- Nominal Operating Volt Rating Un
- 480 V
- Product Brand
- Surge-Trap®
- Product Line
- Surge-Trap® Type 1 STXR Series SPD
- Protection Modes
- L-G, L-L
- Short Circuit Current Rating Sccr
- 200 kA
- System Configuration
- 3-Phase Delta
- Ul Spd Type
- Type 1
- Vpr L-G
- 1800 V
- Vpr L-L
- 3000 V
- Wire Connections
- Pre-wired
