Mersen STP690Y07M
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

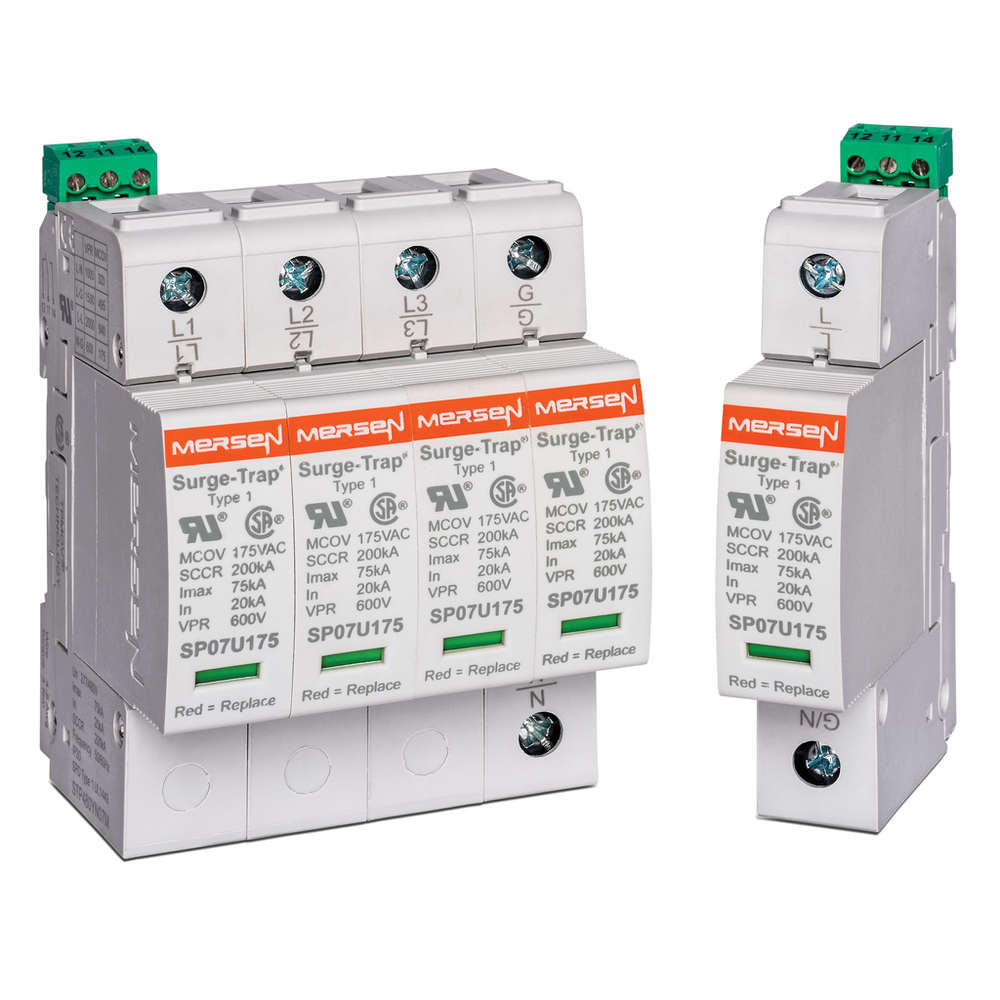

Surge-Trap® Pluggable Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor featuring Mersen’s patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.SPD - Plugable STP 75 Series 690V L-N VPR 1500V L-N MCOV 550V 75 kA 3-pole MICRO
Mersen STP690Y07M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Or Dc
- AC
- Connection Terminal Type
- Box
- Country Of Origin
- MX
- Flammability Rating
- UL94 V0
- Frequency Hz
- 50/60 Hz
- Housing Material
- PET (Polyethelene Terphthalate)
- Installation Mounting
- DIN Rail
- Max Discharge Current Imax 8 20
- 75kA
- Max Operating Temp
- 85 °C
- Max Storage Temp
- 85 °C
- Mcov L-L
- 1100 V
- Mcov L-N
- 550 V
- Min Operating Temp
- -40 °C
- Min Storage Temp
- -40 °C
- Nominal Discharge Current
- 10kA
- Nominal Operating Volt Rating Un
- 400/690 V
- Number Of Poles
- 3-Pole
- Number Of Wires
- 4 Wires
- Product Brand
- Surge-Trap®
- Product Line
- Surge-Trap® Pluggable STP Series - 75kA
- Protection Modes
- L-N
- Replacement Plug L1
- SP07U550
- Replacement Plug L2
- SP07U550
- Replacement Plug L3
- SP07U550
- Response Time
- <25 ns
- Short Circuit Current Rating Sccr
- 200 kA
- System Configuration
- Three Phase Wye
- Torque Rating
- 35.4 lb-in
- Ul Spd Type
- Type 1 Component Assembly
- Vpr L-L
- 3000 V
- Vpr L-N
- 1500 V
- Wire Connections
- Box
- Wire Type
- Solid / Stranded CU
- Wiring Range
- #4 to #14 AWG
