Description

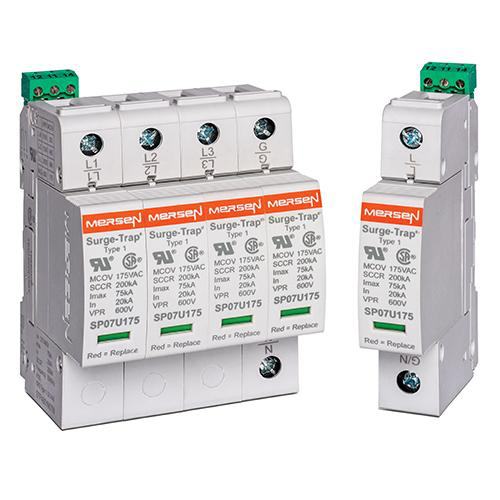

Surge-Trap® Pluggable Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor featuring Mersen’s patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.SPD - Plugable STP Series 480Y/277V L-L VPR 1800V L-L MCOV 640V 50 kA 3P Micro
Mersen STP4803PYGM is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AC or DC
- AC
- Connection/Terminal Type
- Box
- Housing Material
- PET (Polyethelene Terphthalate)
- Indication System
- Yes
- Indication System Type
- Microswitch
- Installation Mounting
- DIN Rail
- Max Discharge Current : Imax (8/20)
- 50 kA per phase
- MCOV L-G
- 320 V
- MCOV L-L
- 640 V
- MCOV L-N
- 320 V
- MOV Response Time
- <25 ns
- Nominal Discharge Current (In) (8/20)
- 20 kA
- Nominal Operating Volt Rating (Un)
- 480Y/277 V
- Number of Poles
- 3-pole
- Number of Wires
- 4 Wire
- Product Height
- 2.7 in
- Product Length
- 3.58 in
- Product Weight
- 1.15 lb
- Product Width
- 2.1 in
- Protection Modes
- L-G, L-L, L-N, N-G
- Replacement Plug L1
- SP320U
- ROHS Compliant
- Yes
- Sell Pack Height
- 2.75 in
- Sell Pack Length
- 4.88 in
- Sell Pack Quantity
- 1 Each
- Sell Pack Width
- 2.88 in
- Short Circuit Current Rating (SCCR)
- 200 (most models) kA
- System Configuration
- 3-Phase Wye
- UL SPD Type
- Type 1 Component Assembly
- VPR L-G
- 1000 V
- VPR L-L
- 1800 V
- VPR L-N
- 1000 V
- Wiring range
- #6 to #14 AWG
