Description

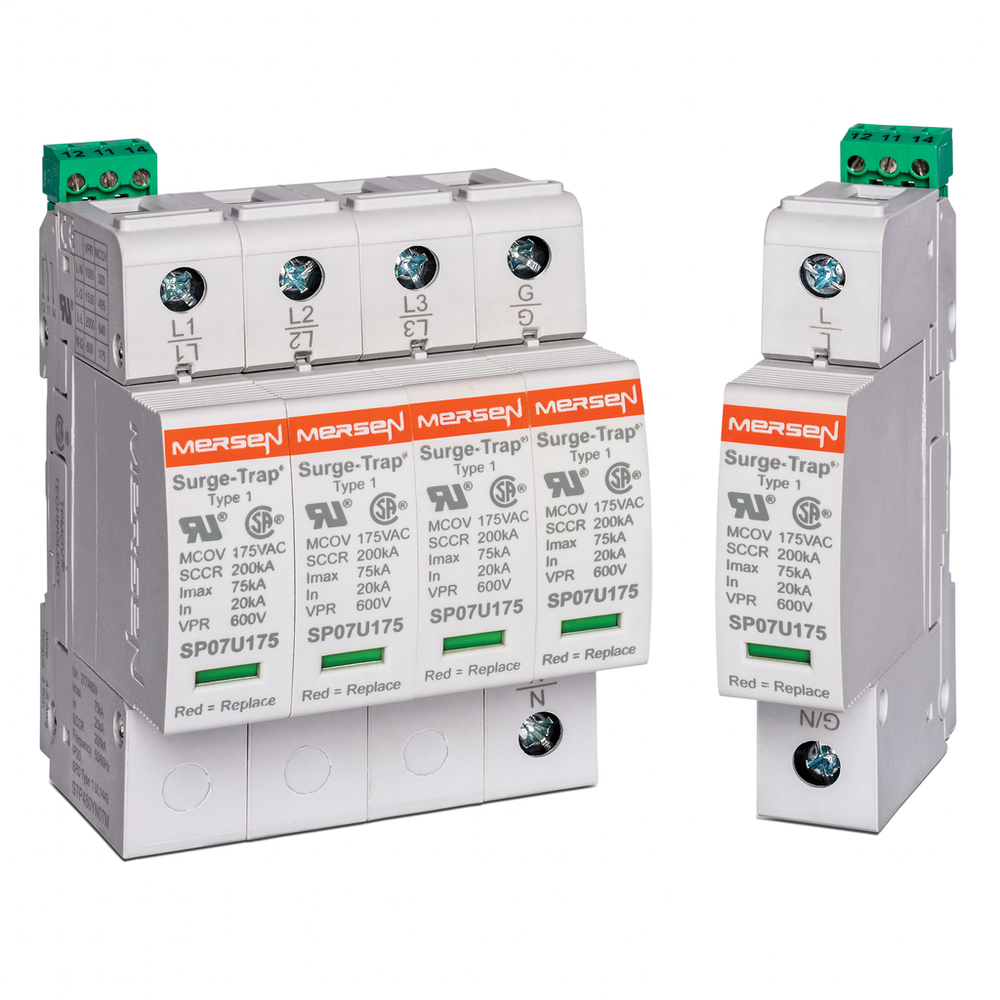

Surge-Trap® Pluggable Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor featuring Mersen’s patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.SPD - Plugable STP 75 Series 208V L-N VPR 600V L-L MCOV 175V 75 kA 3-pole MICRO
Mersen STP208Y07M is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Or Dc
- AC
- Connection Terminal Type
- Box
- Country Of Origin
- MX
- Flammability Rating
- UL94 V0
- Frequency Hz
- 50/60 Hz
- Housing Material
- PET (Polyethelene Terphthalate)
- Installation Mounting
- DIN Rail
- Max Discharge Current Imax 8 20
- 75kA
- Max Operating Temp
- 85 °C
- Max Storage Temp
- 85 °C
- Mcov L-L
- 350 V
- Mcov L-N
- 175 V
- Min Operating Temp
- -40 °C
- Min Storage Temp
- -40 °C
- Nominal Discharge Current
- 20kA
- Nominal Operating Volt Rating Un
- 120/208 V
- Number Of Poles
- 3-Pole
- Number Of Wires
- 2 Wire
- Product Brand
- Surge-Trap®
- Product Line
- Surge-Trap® Pluggable STP Series - 75kA
- Protection Modes
- L-N
- Replacement Plug L1
- SP07U175
- Replacement Plug L2
- SP07U175
- Replacement Plug L3
- SP07U175
- Response Time
- <25 ns
- Short Circuit Current Rating Sccr
- 200 kA
- System Configuration
- Three Phase Wye
- Torque Rating
- 35.4 lb-in
- Ul Spd Type
- Type 1 Component Assembly
- Vpr L-L
- 1200 V
- Vpr L-N
- 600 V
- Wire Connections
- Box
- Wire Type
- Solid / Stranded CU
- Wiring Range
- #4 to #14 AWG
