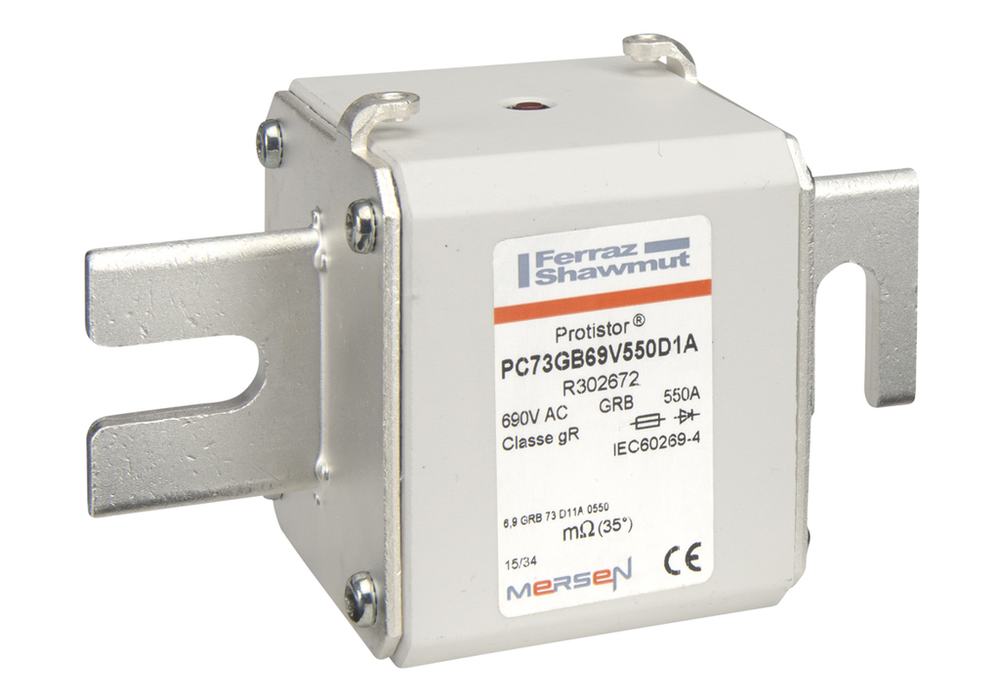

Mersen R302672
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The 690V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® gR have been engineered to provide full range protection to eliminate all overloads and short circuit fault. Each fuse is assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.Size 73 type DIN110 gR 550 A 690VAC
Mersen R302672 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Max I R Breaking Capacity I1
- 150 kA
- Ampere Rating
- 550 A
- Body Insulating Material
- Ceramic
- Clearing I2T At Rated Voltage
- 400 kA²s
- Connection Terminal Material
- Silver-Plated Copper
- Connection Terminal Type
- DIN Type Blades
- Country Of Origin
- FR
- Fuse Size
- 73
- Melting I2T
- 68 kA²s
- Mounting
- Bolted
- Power Dissipation At Rated Current Value
- 87 W
- Product Brand
- Protistor®
- Product Line
- Protistor® size 73 gR, 690VAC (IEC)
- Rated Voltage Ac Iec
- 690 V
- Speed Characteristic
- gR
