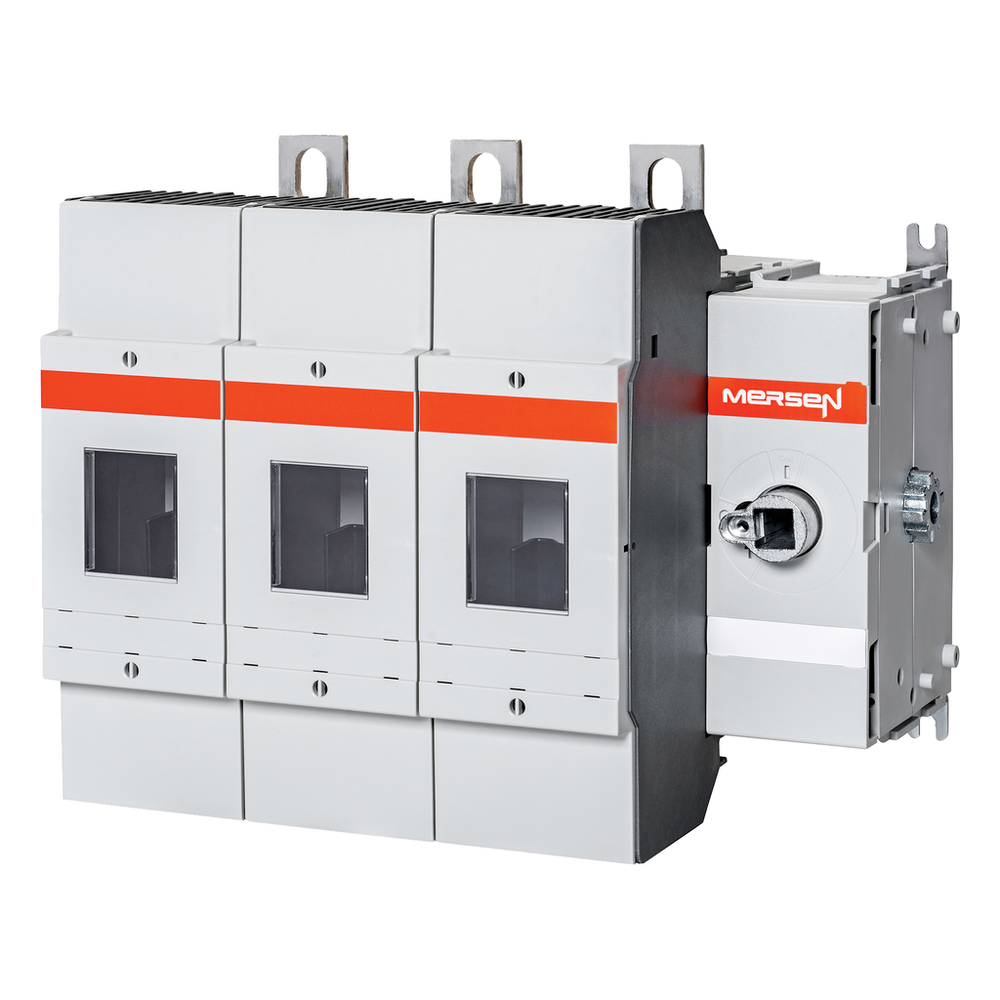

Mersen M30J12
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Mersen M30J12 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ampere Rating
- 30 A
- Connection Terminal Type
- Box
- Contact Type
- Double Break
- Country Of Origin
- FI
- Installation Mounting
- Direct Screw Mount
- Max Fuse Rating
- 30 A
- Max Horsepower Rating Fla
- 3-Phase: 240V 7.5HP, 480V 15HP, 600V 20HP; 1-Phase 120V 2HP, 240V 3HP
- Max Operating Temp
- 40 °C
- Max Storage Temp
- 55 °C
- Min Operating Temp
- -5 °C
- Min Storage Temp
- -25 °C
- Number Of Poles
- 3-Pole
- Product Line
- UL98 Fused Switch
- Rated Insulation Voltage
- 1000 V
- Rated Voltage Ac Ul
- 600 V
- Rated Voltage Dc Ul
- 250 V
- Short Circuit Current Rating Sccr
- 200 kA
- Short Circuit Rating Class J
- 200 kA
- Short Circuit Rating Standalone
- 200 kA
- Test Feature
- 0
- Torque Rating
- 17 lb-in
- Wire Connections
- Box
- Wiring Range
- #18-8
