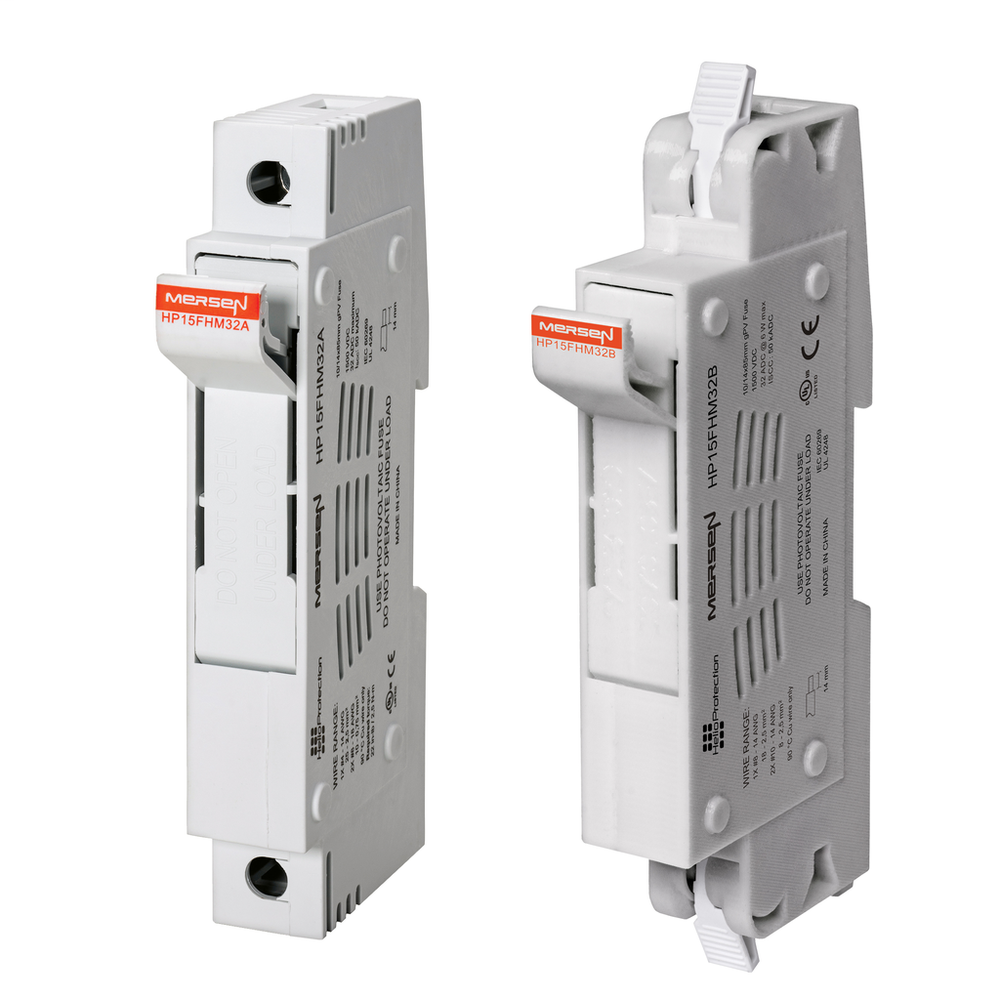

Mersen HP15FHM32A
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Mersen’s 1500 VDC HelioProtection fuse holders for 10/14x85mm gPV fuses introduce the next level of safety for Utility scale photovoltaic applications. The HP15FHM32 fuse holders are finger safe (IP20 ingress protection rated), featuring a rotating fuse carrier, similar to the Mersen UltraSafe® fuse holders. The HP15FHM32 series input and output terminals accept standard PV rated wiring and comb bus bars, providing added versatility for end-use installations. The body features high performance UL 94 V-0 rated polymer material, providing superior flammability rating, with exceptional durability and dielectric withstand properties.1500V Photovoltaic Fuse Holder 10/14x85mm Screw
Mersen HP15FHM32A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ampere Rating
- 32 A
- Clamping
- HP15FHM32A
- Country Of Origin
- CN
- Fuse Size
- 10x85
- Installation Mounting
- DIN Rail
- Market Brand
- HelioProtection®
- Max Operating Temp
- 125 °C
- Max Storage Temp
- 125 °C
- Min Operating Temp
- -40 °C
- Min Storage Temp
- -40 °C
- Number Of Poles
- 1-Pole
- Operating Temperature
- -40 to +125°C
- Product Brand
- HelioProtection®
- Product Line
- HP15FHM32 HelioProtection® Fuse Holders for PV Applications
- Rated Voltage Dc Iec
- 1500 V
- Rated Voltage Dc Ul
- 1500 V
- Recommended gPV fuses
- HP15M
- Required terminal torque (HP15FHM32A only)
- 22 in-lb/2.5N-m
- Short Circuit Current Rating Sccr
- 50 DC kA
- Torque Rating
- 22 lb-in
- Wire range
- HP15FHM32A
