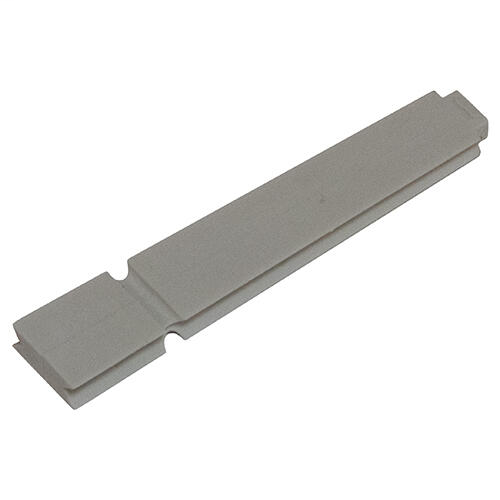

Mersen FSPDB5C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
FSPDBs introduce a new level of safety and ease for installing power distribution blocks. An IP20 level of finger safe protection is achieved using the FSPDBs and thus eliminates the need for special covers or custom Plexiglas sheets to protect your panels. FSPDBs (sizes 1 to 4) simply snap onto 35mm DIN rail to provide the quickest installation. And since they are modular, you can form any number of poles desired. If multi-pole panel mounting is desired, multiple-pole assembly pins are available. FSPDBs provide a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point.FSPDB UL1059 CU 600V 840A 1-pole 2 in/2 out Box/Box
Mersen FSPDB5C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- AC & DC ratings
- FSPDB1, 2, and 3 have been evaluated for use at 1500V (AC or DC) provided they are installed on DIN-rails only and with proper barriers and spacing between poles of opposite polarity
- Ampere Rating Al
- 840 A
- Ampere Rating Cu
- 840 A
- Available accessories
- For multi-pole panel mounting, simply snap in pins for rigid fit. Cap plugs provide the ability to maintain touch safety on unused openings. Circuit identification markers simply snap into blocks to ID circuits. End anchors provide rigid end stops
- Body Insulating Material
- Nylon
- Captive termination screws
- Unique channel design ensures captive metric wire termination screws. Screws can never be lost
- Compact modularity
- Single or multiple pole configurations in the most compact footprint. Allows users to build smaller or higher density panels
- Connector Type Primary
- Box
- Connector Type Secondary
- Box
- Country Of Origin
- MX
- Finger-safe protection
- Fully insulated block ensures touch safe isolation of live parts. Recessed termination screws and wire openings provide IP20 grade protection and qualify as “fingersafe” per IEC 529
- Flammability Rating
- 94 V-0
- Hex Screw Size And Type Primary
- 0
- Hole Diameter Primary
- 0.95 in
- Hole Diameter Secondary
- 0.95 in
- Installation Mounting
- Screw
- Max Operating Temp
- 80 °C
- Max Storage Temp
- 80 °C
- Min Storage Temp
- -25 °C
- Multiple wire ratings
- Provide users more versatility by offering capability of using multiple conductors in #2 and 2/0 openings
- Number Of Openings Per Pole Primary
- 2
- Number Of Openings Per Pole Secondary
- 2
- Number Of Poles
- 1-pole
- Product Line
- FSPDB Series UL 1059 Finger-Safe Power Distribution Blocks
- Rated Voltage Ac Ul
- 600 V
- Rated Voltage Dc Ul
- 1500 V
- Short Circuit Rating Class Cc
- 30 kA
- Short Circuit Rating Class G
- 60 kA
- Short Circuit Rating Class J
- 600 kA
- Short Circuit Rating Class L
- 0 kA
- Short Circuit Rating Class Rk1
- 600 kA
- Short Circuit Rating Class Rk5
- 400 kA
- Short Circuit Rating Class T
- 600 kA
- Short Circuit Rating Standalone
- 10 kA
- Snap on DIN-rail mounting
- Sizes 1 to 4 feature integral DIN rail adaptors allowing for quick and easy installations on 35mm DIN rail yielding lower installed costs
- Torque Rating Primary
- 600-500 310; 400-2/0 220; 1/0-#4 90;
- Torque Rating Secondary
- 600-500 310; 400-2/0 220; 1/0-#4 90; ;
- Wire Insulation Rating
- 60/75C
- Wire Range Primary
- 600 - #4
- Wire Range Secondary
- 600 - #4
- Wire Type
- Solid/Stranded CU
