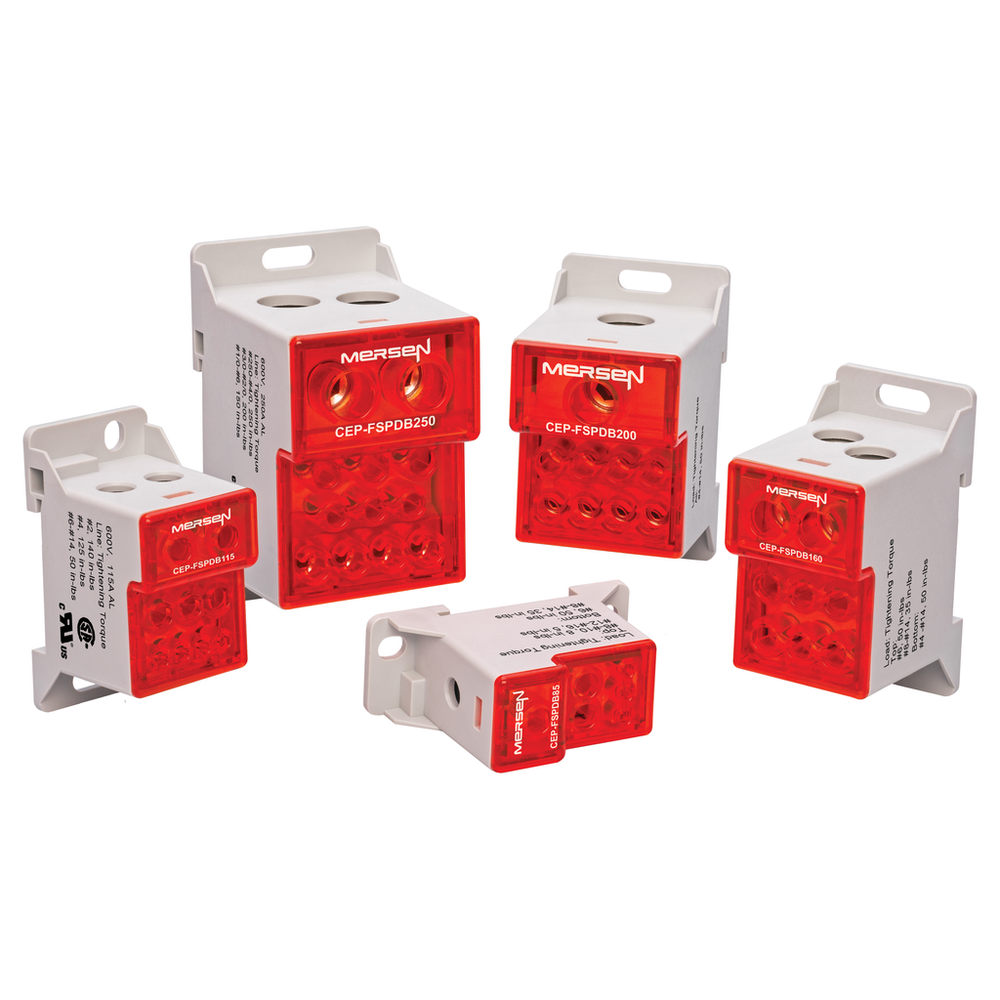

Mersen CEP-FSPDB250
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Mersen's finger safe IP20-rated Power Distribution Blocks are part of the new Compact EP® line of products. The compact footprint allows space savings in panels, contributing to reduced panel size when compared to traditional power distribution blocks. The Compact PDB is ideal for low voltage applications. Rated for UL-600V, ampere range of 85-250A, it can accommodate wire ranges AWG 18-3/0, catering to a wide range of low voltage applications. The PDBs can be DIN rail mounted, are dual wire rated, and are capable of DLO wire acceptance allowing ease of installation. Translucent covers allow visual inspection of wire termination points and wiring configurations.Compact Finger safe PDB rated for 250A, 600V, Al Block
Mersen CEP-FSPDB250 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ampere Rating Al
- 205 A
- Ampere Rating Cu
- 250 A
- Body Insulating Material
- Glass Filled Polycarbonate
- Captive termination screws
- Unique channel design ensures captive metric wire termination screws. Screws can never be lost
- Compact modularity
- Smaller footprint allows panel builders to reduce space and build smaller or higher density panels
- Connector Material
- Tin-plated Aluminum
- Connector Type Primary
- Box
- Connector Type Secondary
- Box
- Country Of Origin
- MX
- Finger-safe protection
- Fully insulated block ensures touch-safe isolation of live parts
- Flammability Rating
- UL94 V-0
- Hex Screw Size And Type Primary
- hex 1/4
- Hex Screw Size And Type Secondary
- hex 1/8 + hex 1/8 + hex 5/32
- Hole Diameter Primary
- 0.45 in
- Hole Diameter Secondary
- NaN in
- Installation Mounting
- Screw Mount or DIN Rail
- Max Operating Temp
- 40 °C
- Max Storage Temp
- 90 °C
- Min Operating Temp
- -10 °C
- Min Storage Temp
- -25 °C
- Multiple wire ratings
- Blocks are multi wire rated - see multi wire rating table and can accomodate 18AWG wire for low voltage applications such as LED lighting
- Number Of Openings Per Pole Primary
- 2
- Number Of Openings Per Pole Secondary
- 4 + 3 + 3
- Number Of Poles
- 1-Pole
- Product Line
- Compact PDB
- Rated Voltage Ac Ul
- 600 V
- Rated Voltage Dc Ul
- 600 V
- Short Circuit Rating Class Cc
- 30 A
- Short Circuit Rating Class G
- 60 A
- Short Circuit Rating Class J
- 450 A
- Short Circuit Rating Class Rk1
- 400 A
- Short Circuit Rating Class Rk5
- 200 A
- Short Circuit Rating Class T
- 450 A
- Short Circuit Rating Standalone
- 10 kA
- Snap on DIN-rail mounting
- Integral DIN rail adaptors allow for quick and easy installations on 35mm DIN rail, yielding lower installed costs
- Torque Rating Primary
- 250 250; 3/0-2/0 200; 1/0-#6 150
- Torque Rating Secondary
- #6 50; #8-#14 35; #4-#14 50; #2 140; #4-#14 50
- Wire Insulation Rating
- 60/75C
- Wire Range Primary
- 250 - #6
- Wire Range Primary Dlo
- 4/0 - #6
- Wire Range Secondary
- #6-#14 + #4-#14 + #2-#14
- Wire Type
- Solid/Stranded/AL/CU
