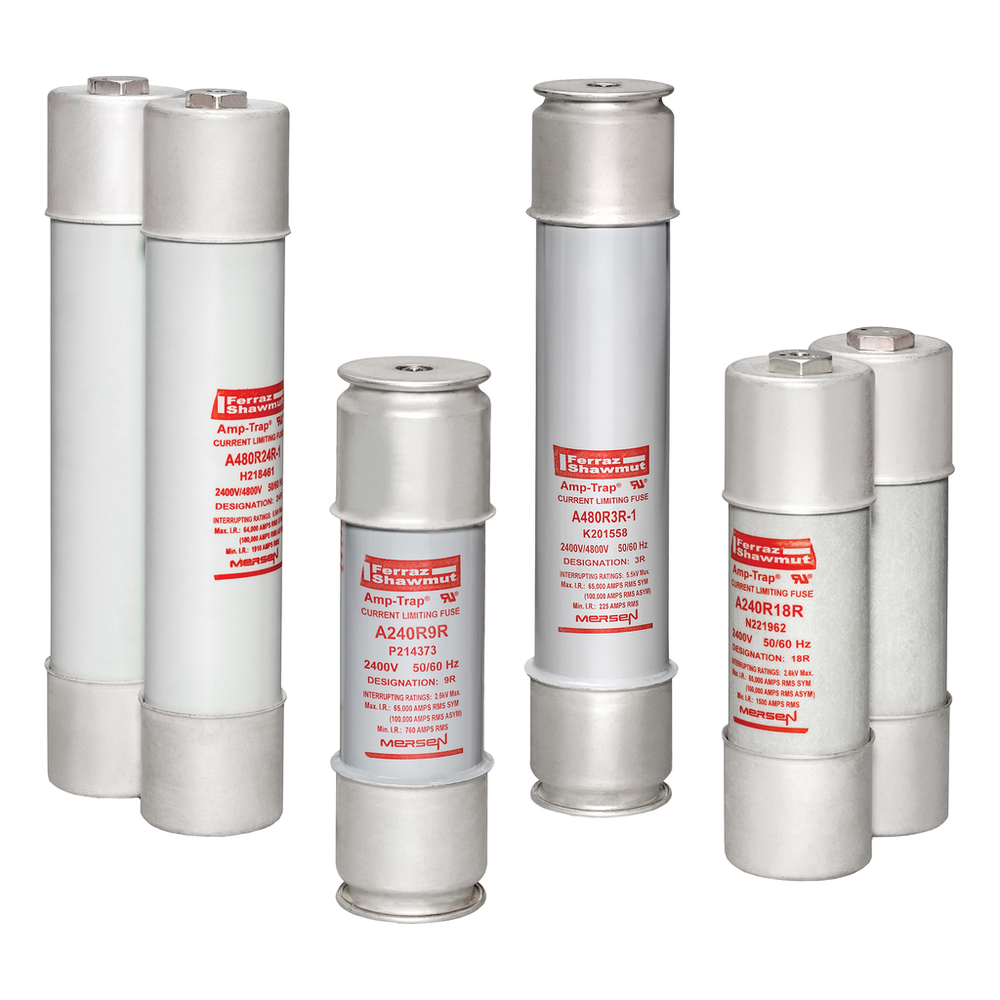

Mersen A480R24R-1HE
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clipsMedium Voltage Fuse 4800V 24R R-Rated Ferrule Mount Striker A480R HE Series
Mersen A480R24R-1HE is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 9F60
- 0.125 lb tripped force – 0.20 Inch
- Ac Max I R Breaking Capacity I1
- 50 kA
- Amp trap
- 3" Barrel 2 lb tripped force - 0.50 Inch
- Body Insulating Material
- Epoxy
- Connection Terminal Material
- Silver-Plated Copper
- Connection Terminal Type
- Ferrule
- Country Of Origin
- MX
- Max Operating Temp
- 80 °C
- Max Storage Temp
- 80 °C
- Min Storage Temp
- -25 °C
- Mounting
- Clip
- Product Brand
- Amp-Trap®
- Product Line
- 5 kV Ferrule Mount Motor
- Rated Voltage Ac Ul
- 4800 V
- Speed Characteristic
- R-Rated
