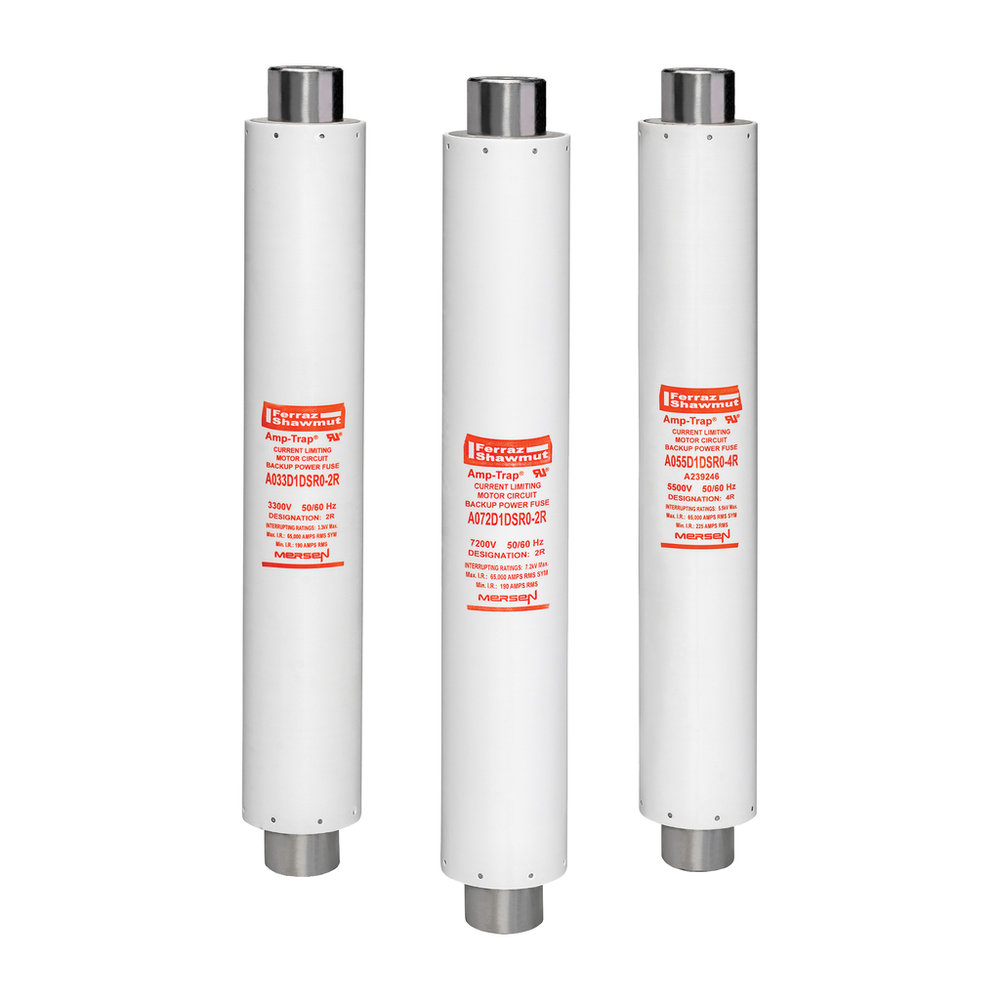

Mersen A055D1DSR0-12R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Amp-Trap® R-Rated DIN style fuses are current-limiting, high interrupting rating fuses, intended for the short circuit protection of medium voltage motors and motor controllers. This product range offers North American R-Rated performance in the IEC 282-1 DIN mounting configuration of 442mm. R-Rated fuses are applied as back up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. Amp-Trap R-Rated, DIN type fuses are offered in voltage ratings of 3.3kV, 5.3kV and 7.2kV in ratings from 2R to 19R. All fuses within this product group are UL component recognized. DEFINITIONS ,R-Rating R-Rated fuses are back-up fuses that operate as follows (Per ANSI C37.46-2000) An R-Rated fuse will melt in the range of 15 to 35 seconds at a value of current equal to 100 times the “R” rating ,Back-up Current-Limiting Fuses A back-up current-limiting fuse is a fuse that can interrupt any current between its rated minimum interrupting current and its maximum interrupting current. Back-up fuses are not designed or intended to open under overload conditions ,Continuous Ampere Rating at 40°C The continuous amp rating defines the thermal capability of the fuse per ANSI C37.46 and should not be the sole factor in fuse selection ,Spring-Reinforced Clip MR45 & Spring Ref.# L096472 ,Fuse-Holder SI 24/442 Ref # K209424 In compliance with IEC 282-1, DIN standard 43625 ,Note Ratings above 19R may be achieved by paralleling fuses. Please consult factory for detailsMedium Voltage Fuse 5500V 12R R-Rated DIN Striker A055D Series
Mersen A055D1DSR0-12R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Max I R Breaking Capacity I1
- 100 kA
- Body Insulating Material
- GMG
- Clip mount DIN 45
- R-Rated fuses with North American ANSI characteristics in a standard DIN 442mm size
- Connection Terminal Material
- Silver-Plated Brass
- Connection Terminal Type
- Clip
- Country Of Origin
- MX
- Max Operating Temp
- 80 °C
- Max Storage Temp
- 80 °C
- Min Storage Temp
- -25 °C
- Mounting
- Clip
- Product Diameter
- 2.88 in
- Product Line
- 5.5 kV DIN Mount Motor
- Rated Voltage Ac Ul
- 5500 V
- Speed Characteristic
- R-Rated
