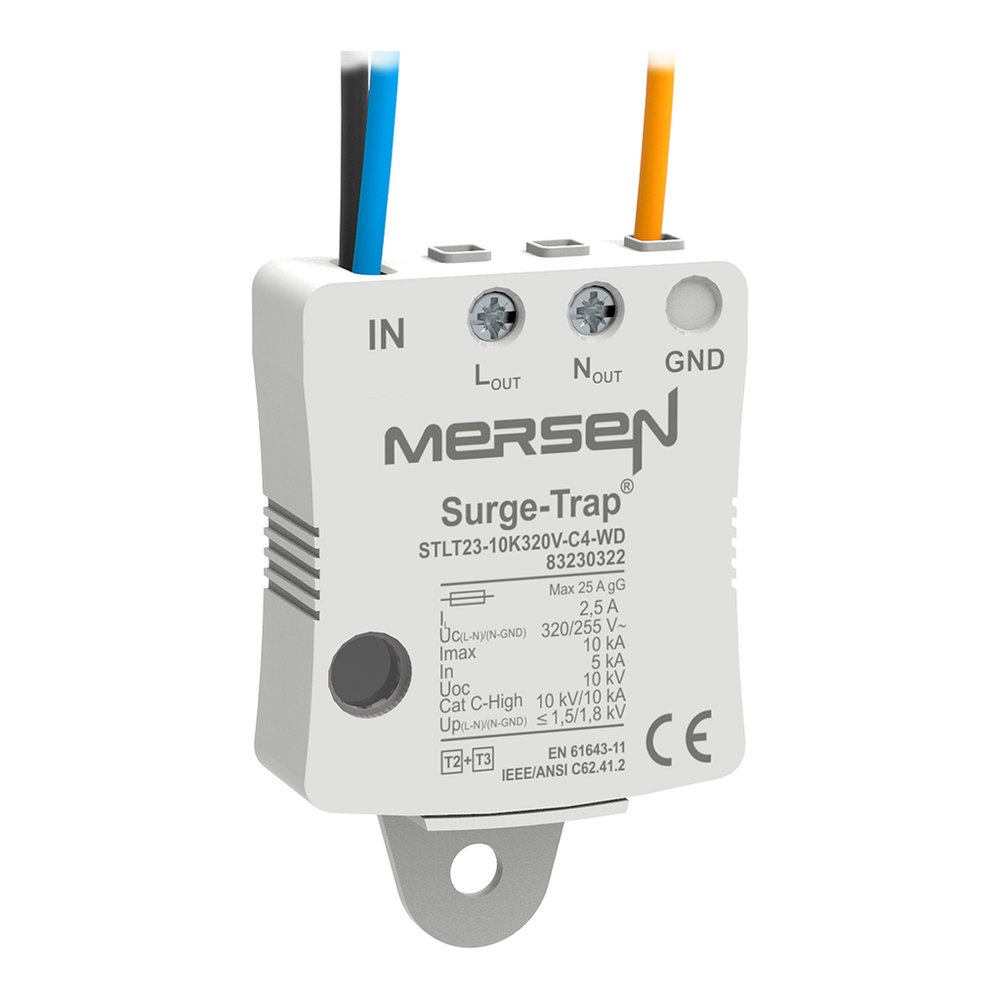

Mersen 83230322
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
STL T23 is the series of robust 10-20 kV combined Type 2+3/Class II+III devices for discharging voltage surges while providing a very fine voltage protection level, in accordance with EN/IEC 61643. Suitable for protection of LED outdoor luminaires (street-light). Due to the exposure of the extremely sensitive LED electronics to lightning–induced overvoltages, STL T23 is a widespread market solution amongst OEM manufacturers of LED lighting systems.SPD Type 2+3, 10kA, 320V-C4-WD
Mersen 83230322 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Or Dc
- AC
- Back-up fuse
- 25 A gG
- Combined Discharge Voltage 1-2 50 Uoc
- 10 kV
- Combined voltage pulse (1.2/50μs)
- 10 kV, 20 kV (Uoc)
- Country Of Origin
- ES
- Housing Material
- PA66 CT1; V-0
- Iec Spd Type
- Type 2+3 / Class II+III
- Max Back-Up Fuse
- 32 A gG
- Max Discharge Current Imax 8 20
- 10kA
- Maximum discharge current (8/20μs)
- 10 kA, 20 kA
- Max Operating Temp
- 80 °C
- Min Operating Temp
- -40 °C
- Nominal Discharge Current
- 5kA
- Nominal discharge current (8/20μs)
- 5 kA, 10 kA
- Nominal Operating Volt Rating Un
- 230 V
- Optional
- “surge tested and certified” luminary with STL T23 by accredited LAB
- Product Brand
- Surge-Trap®
- Product Line
- Surge-Trap® Type 2+3 - for LED Lighting
- Rated current load (IL)
- 2.5 A, 10 A (series)
- Rated Current Load Il
- 2.5 A
- Response Time
- 25 ns
- Uc L-N
- 320 V
- Uc N-Pe
- 255 V
- Up At In L-N
- ≤1.5 kV
- Up At In L-Pe
- ≤1.8 kV
- Up At In N-Pe
- ≤1.8 kV
- Wire Type
- Stranded: 0,7…2,5mm²
