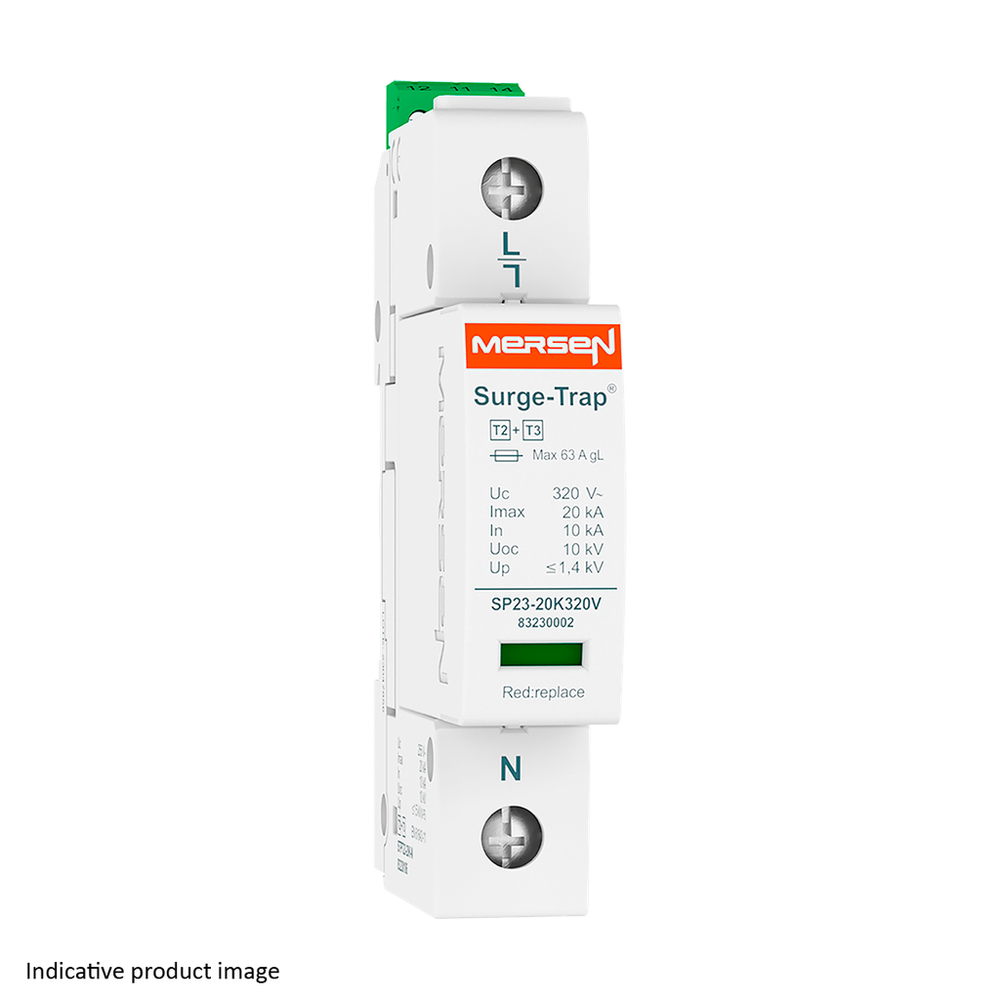

Mersen 83230100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
STP T23 20 is the series of combined Type 2+3/Class II+III devices for discharging voltage surges while providing a very fine voltage protection level, in accordance with EN/IEC 61643-11. Suitable as the final stage of protection in panels with Type 2 protection devices installed upstream such as STP T2 40 SPDs. These SPDs should be installed as close as possible to the equipment being protected.SPD Type 2+3, 20kA, Uc150V, L-N, 1 Pole, 1 Module, Pluggable
Mersen 83230100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Or Dc
- AC
- Back-up fuse
- 63 A gG
- Combined Discharge Voltage 1-2 50 Uoc
- 10 kV
- Combined voltage pulse Uoc (1.2/50μs)
- 10kV
- Country Of Origin
- ES
- Housing Material
- PA66 CT1; V-0
- Iec Spd Type
- Type 2+3 / Class II+III
- Max Back-Up Fuse
- 63 A gG
- Max Discharge Current Imax 8 20
- 20kA
- Maximum discharge current (8/20μs)
- 20kA per phase
- Nominal Discharge Current
- 10kA
- Nominal discharge current (8/20μs)
- 10kA per phase
- Nominal Operating Volt Rating Un
- 120 V
- Number Of Poles
- 1-Pole
- Product Brand
- Surge-Trap®
- Product Line
- Surge-Trap® Pluggable STPT23 Series - 20kA
- Replacement Plug L-N
- SP23-20K150V
- Response Time
- 25 ns
- Short Circuit Withstand Isccr
- 25 kA
- System Configuration
- TT. TNS. TNC
- Torque Rating
- 35.4 lb-in
- Uc L-N
- 150 V
- Un(L-N/L-L)
- 120/208V, 230/400V, 277/480V and 400/690V
- Up At In L-N
- ≤0.8 kV
- Wire Type
- Rigid: 6…35mm² / Stranded: 6…25mm²
