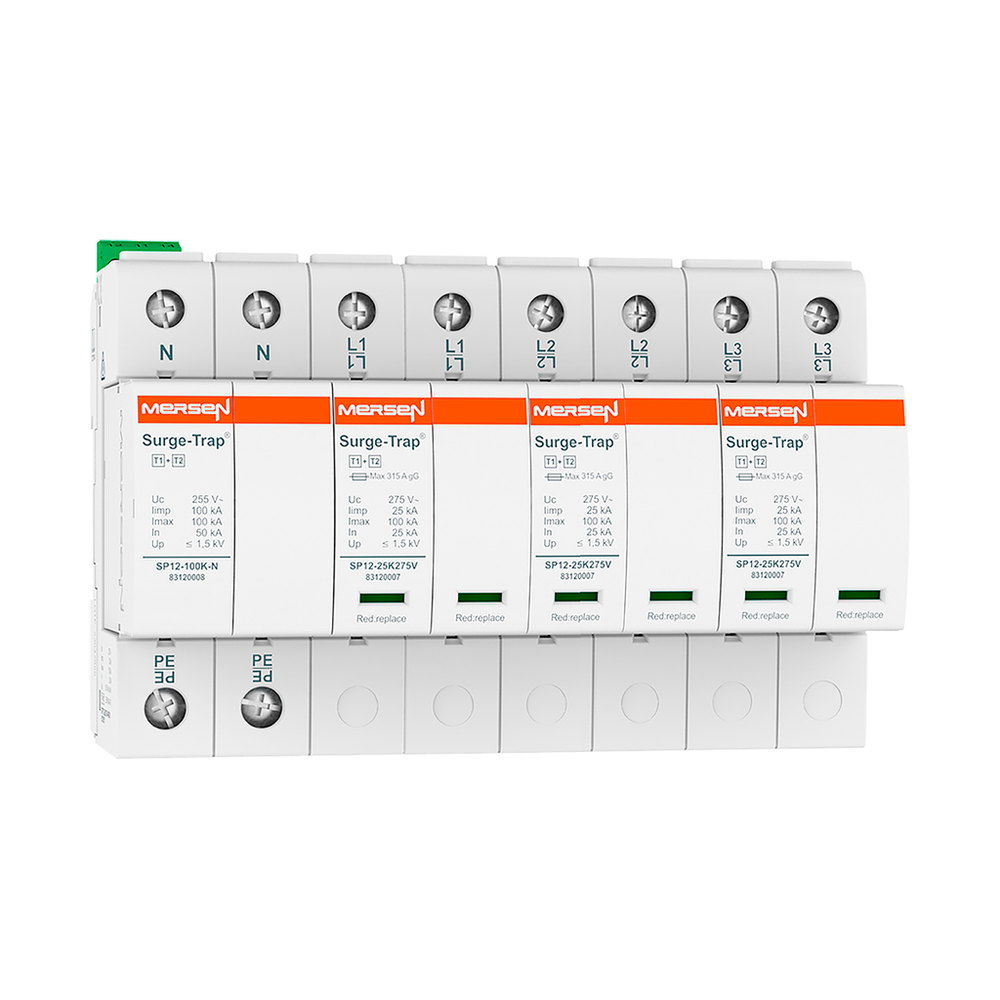

Mersen 83120151
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
STP T12 25 is the series of combined Type 1+2/Class I+II devices for discharging lightning currents and protecting against voltage surges, in accordance with EN/IEC 61643-11. Suitable as the first step of protection in incoming power supply panels and areas with exposure to the atmosphere, where installations are usually provided with an external lightning protection system.SPD Type 1+2, 25kA, Uc275V, 3+1 TT, 4 Poles, 8 Modules, Pluggable, Remote
Mersen 83120151 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Or Dc
- AC
- Back-up fuse
- 315 A gG
- Country Of Origin
- ES
- Following Current Ifi
- 0,1 kA
- Housing Material
- PA66 CT1; V-0
- Iec Spd Type
- Type 1+2 / Class I+II
- Lightning Impulse Current 10 350 Iimp
- 25 kA
- Lightning impulse current (10/350μs)
- 25kA per phase
- Max Back-Up Fuse
- 315 A gG
- Max Discharge Current Imax 8 20
- 100kA
- Maximum discharge current (8/20μs)
- 100kA per phase
- Max Operating Temp
- 80 °C
- Min Operating Temp
- -40 °C
- Nominal Discharge Current
- 25kA
- Nominal discharge current (8/20μs)
- 25kA per phase
- Nominal Operating Volt Rating Un
- 230 / 400 V
- Number Of Poles
- 4-Pole
- Product Brand
- Surge-Trap®
- Product Line
- Surge-Trap® Pluggable STPT12 Series - 25kA
- Protection Modes
- TT
- Replacement Plug L-N
- SP12-25K275V
- Replacement Plug N-Pe
- SP12-100K-N
- Short Circuit Withstand Isccr
- 25 kA
- System Configuration
- TT
- Torque Rating
- 35.4 lb-in
- Uc L-N
- 275 V
- Uc N-Pe
- 255 V
- Un(L-N/L-L)
- 230/400V
- Up At In L-N
- ≤1.5 kV
- Up At In N-Pe
- ≤1.5 kV
- Wire Type
- Rigid: 6…35mm² / Stranded: 6…25mm²
