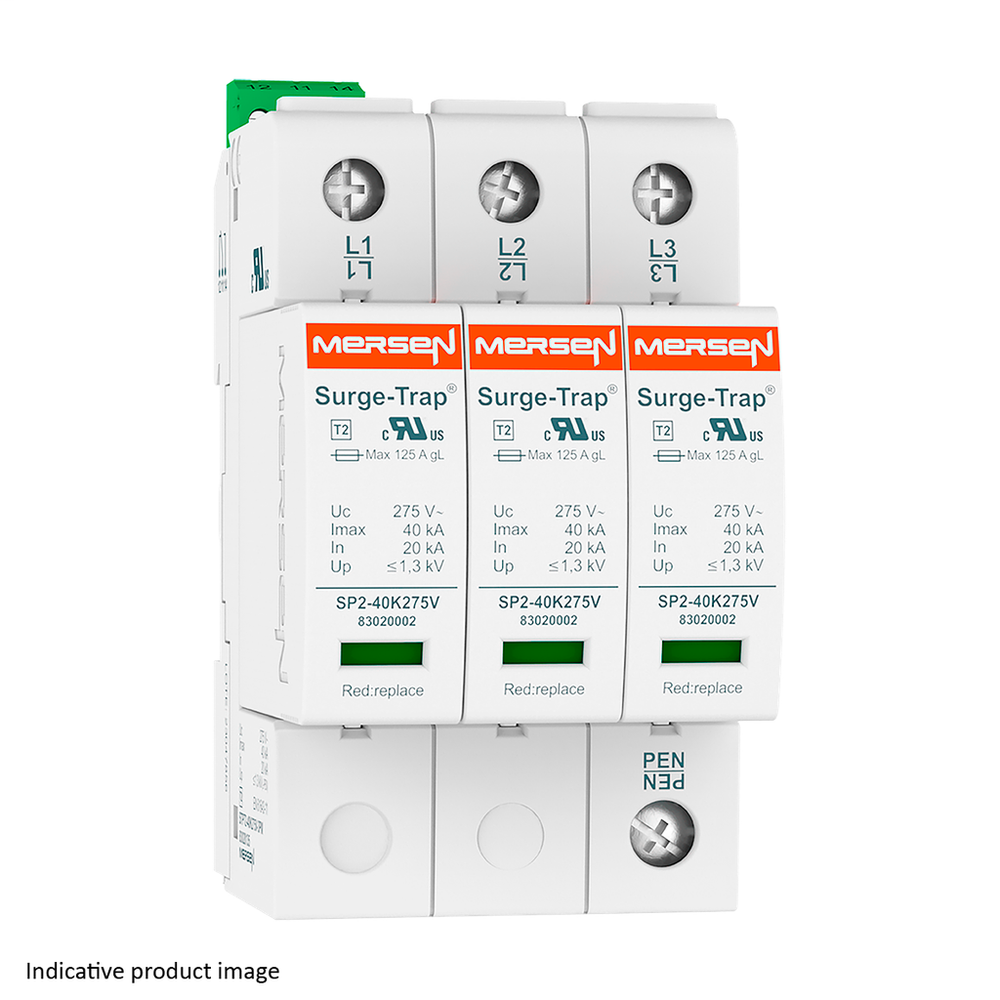

Mersen 83020103
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
STP T2 40 is the series of Type 2/Class II devices for discharging voltage surges, in accordance with EN/IEC 61643-11 and certified UL 1449 4th Ed. Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed upstream, or for the first stage of protection in commercial or other applications not exposed to direct strikes and with no external lightning protection system.SPD Type 2, 30kA, Uc750V, 3+0 TNC, 3 Poles, 3 Modules, Pluggable, Remote
Mersen 83020103 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Or Dc
- AC
- Back-up fuse
- 125 A gG
- Country Of Origin
- ES
- File UL
- E468946
- Housing Material
- PA66 CT1; V-0
- Iec Spd Type
- Type 2 / Class II
- Max Back-Up Fuse
- 125 A gG
- Max Discharge Current Imax 8 20
- 30kA
- Maximum discharge current (8/20μs)
- 40kA per phase
- Max Operating Temp
- 85 °C
- Mcov L-G
- 750 V
- Mcov L-L
- 1500 V
- Min Operating Temp
- -40 °C
- Nominal Discharge Current
- 15kA
- Nominal discharge current (8/20μs)
- 20kA per phase
- Nominal Operating Volt Rating Un
- 400/690(IT)-690/1000(TNC) V
- Number Of Poles
- 3-Pole
- Product Brand
- Surge-Trap®
- Product Line
- Surge-Trap® Pluggable STPT2 Series - 40kA
- Replacement Plug L-N
- SP2-30K750V
- Response Time
- 25 ns
- Short Circuit Current Rating Sccr
- 50 ... 100 kA
- Short Circuit Withstand Isccr
- 25 kA
- System Configuration
- TNC. IT
- Torque Rating
- 35.4 lb-in
- Uc L-L
- 1500 V
- Uc L-Pen
- 750 V
- Un(L-N/L-L)
- 48V, 60V, 120/208V, 230/400V, 277/480V, 400/690V & higher
- Up At In L-Pen
- ≤3.0 kV
- Vpr L-G
- 2500 V
- Vpr L-L
- 5000 V
- Wire Type
- Rigid: 6…35mm² / Stranded: 6…25mm²
