Description

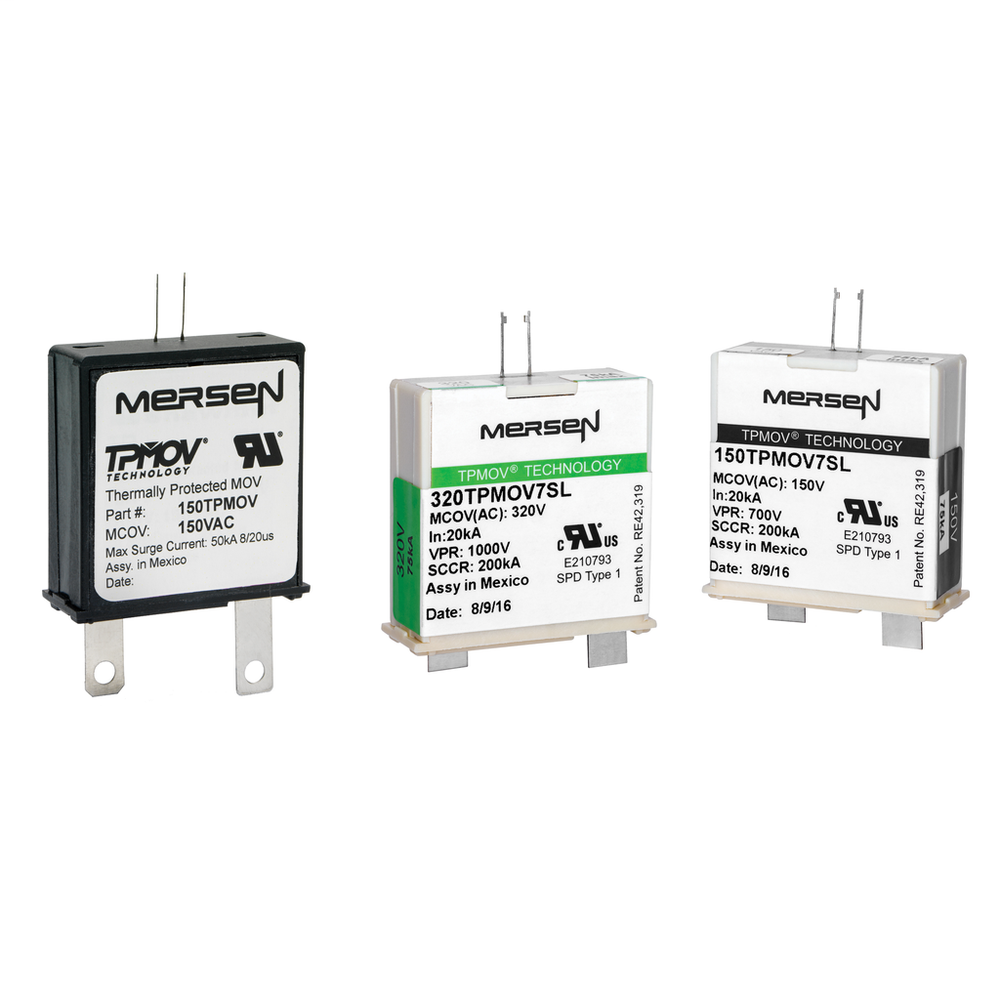

Mersen’s patented TPMOV technology eliminates common failure modes that occur in the field with standard metal oxide varistors. Internally the TPMOV is comprised of a voltage clamping device and a disconnecting apparatus that monitors the status of the metal oxide disk, making the TPMOV a fail-safe device. In the event of an overvoltage breakdown, the metal oxide disc is securely disconnected from the system power by an arc shield. Upon failure, the TPMOV is also equipped with a visual pin indicator as well as a normally open micro-switch, providing remote indication if applicable. TPMOV7 50% more surge capacity, Same footprint The TPMOV7 is rated for 75kA - 8/20μs peak surge current and is available for maximum continuous operating voltages (MCOV) from 150V to 320VAC.SPD - TPMOV 320V Standard Leads Heavy Duty Microswitch Visual Tabs 50 kA
Mersen 320TPMOV-HV is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ac Or Dc
- AC
- Country Of Origin
- MX
- Frequency Hz
- 50/60 Hz
- Housing Material
- PET (Polyethelene Terphthalate)
- Installation Mounting
- PCB Mount
- Max Discharge Current Imax 8 20
- 50 kA
- Max Operating Temp
- 85 °C
- Max Storage Temp
- 85 °C
- Min Operating Temp
- -40 °C
- Min Storage Temp
- -40 °C
- Nominal Discharge Current
- 20 kA
- Nominal Operating Volt Rating Un
- 320 V
- Product Brand
- Surge-Trap®
- Product Line
- TPMOV (Thermally Protected MOV)
- Short Circuit Current Rating Sccr
- 200 kA
- Ul Spd Type
- Type 1 Component Assembly
