Lumberg Automation 7219
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

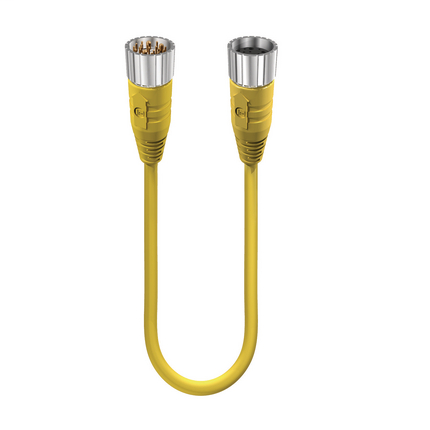

M23 Power Double-Ended Cordset: Male straight to female straight, 19-pin, yellow body, 120 V AC/DC, 16x8 A + 3x10 A; TPE yellow cable, 16x0.5 mm² + 3x1.0 mm²7219 - RSU 19-RKU 19-S4740 - M23 Power Double-Ended Cordset: Male straight to female straight, 19-pin, yellow body, 120 V AC/DC, 16x8 A + 3x10 A; TPE yellow cable, 16x0.5 mm² + 3x1.0 mm²
Lumberg Automation 7219 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable Data
- Ambient Temperature (Fixed Installation)
- -25°C to +80°C
- Ambient Temperature (Flex Installation)
- -5°C to +80°C
- Cable Diameter D
- Ø 11.60 ±0.30 mm
- Cable Jacket Color
- yellow
- Cable Jacket Material
- TPE
- Cable Number
- S4740
- Conductor material
- Cu
- Conductor Size
- 16x0.5mm² + 3x1.0 mm²
- Insulated Wire Diameter
- 16x Ø1.45 mm + 3x Ø1.95 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 10 x D
- Number of Wires
- 19
- UL Cable Type
- AWM: 20841
- Wire Insulation Material
- PP
Notes
- Note Derating
- Notice derating
- Particularities
- When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Product Description
- Brand
- Lumberg Automation
- Connector Type
- Cordset, double ended
- Operating Voltage
- 120 V AC/DC
- Product Family
- Power Connector
- Rated Current
- 16 x 8 A (pin-Ø 1 mm), 3 x 10 A (contact-Ø 1.5 mm)
- Rated Impulse Voltage
- 1.5 kV
- Rated Voltage
- 125 V
- Shielding
- Unshielded
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Length
- 30 m
- Item Description
- RSU 19-RKU 19-S4740/30 M
Technical Data Side 1
- Ambient Temperature (Operation)
- -25°C to +80°C
- Attachment Material
- CuZn, nickel-plated
- Attachment Type
- Coupling Nut
- Clearance / Creepage Distance
- acc. to DIN EN 60664-1 (VDE 0110-1)
- Connector Design
- straight
- Contact Base Material
- CuZn
- Contact Bearer Color
- white
- Contact Bearer Material
- PBT
- Contact Plating
- Cu/Au
- Flammability Class (Contact Bearer)
- UL 94 V0
- Flammability Class (Molded Body)
- UL 94-HB
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 100
- Molded Body Color
- yellow
- Molded Body Material
- TPU
- Note
- Do not connect / disconnect under load.
- Number of Pins
- 19
- O-Ring Material
- NBR
- Overvoltage Category
- II acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family
- M23 Power
- Protection Degree / IP Rating
- IP67
- Type of Contact / Gender
- male
Technical Data Side 2
- Ambient Temperature (Operation), Side 2
- -25°C to +80°C
- Attachment Material, Side 2
- CuZn, nickel-plated
- Attachment Type, Side 2
- Coupling Nut
- Clearance / Creepage Distance, Side 2
- acc. to DIN EN 60664-1 (VDE 0110-1)
- Connector Design, Side 2
- straight
- Contact Base Material, Side 2
- 16 x CuSn/3 x CuZn
- Contact Bearer Color, Side 2
- black
- Contact Bearer Material, Side 2
- PA 66
- Contact Plating, Side 2
- Cu/Au
- Flammability Class (Contact Bearer), Side 2
- UL 94-HB
- Flammability Class (Molded Body), Side 2
- UL 94-HB
- Insulation Resistance, Side 2
- ˃ 10^9 Ohm
- Mating Cycles, Side 2
- ≤ 100
- Molded Body Color, Side 2
- yellow
- Molded Body Material, Side 2
- TPU
- Note, Side 2
- Do not connect / disconnect under load.
- Number of Pins, Side 2
- 19
- O-Ring Material, Side 2
- FKM
- Overvoltage Category, Side 2
- II acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree, Side 2
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Sub Family, Side 2
- M23 Power
- Protection Degree / IP Rating, Side 2
- IP67
- Type of Contact / Gender, Side 2
- female
