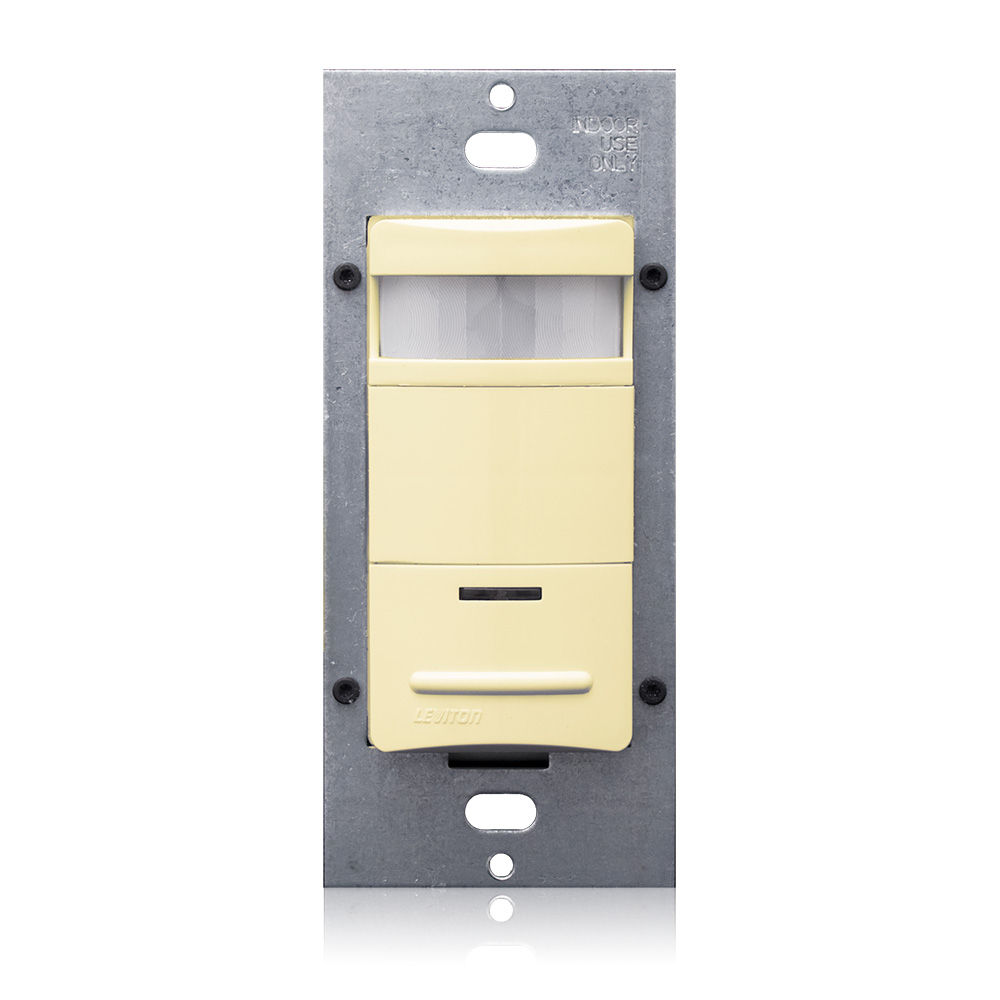

Leviton ODS10-IDI
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Leviton ODS10-IDI is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Frequency
- 50/60Hz
- Load Rating
- Fluorescent: 1200VA @ 120V 2700VA @ 277V - Incandescent: 800W @ 120V Motor: 1/4 HP @ 120V
- Neutral Wire Connection
- Not Required
- Standby Power
- 120V - 100mW, 277V - 250mW
- Voltage
- 120-277 VAC
- Wiring
- Line-Black, Load-Blue, Ground-Green, No Neutral required
Environmental Specifications
- Operating Temperature
- 0°C to 50°C
- Relative Humidity
- 20% to 90% non-condensing
- Storage Temperature Range
- 14° to 185°F (-10° to 85°C)
Mechanical Specifications
- Mounting Type
- Wall Switch
- Size
- Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83"(47mm), Install Depth 1.35"(34.4mm), Install Height 2.60"(66.2mm)
- Switch Type
- Single-Pole
Performance Specifications
- Coverage (Sq.Ft.)
- 2100
- Pattern
- 180°
Product Features
- Application
- Small offices, Conference rooms, Lounges, Classrooms
- Color
- Ivory
- Grade
- Commercial
- Mounting
- Wall Switch
- Product Line
- ODS10
- Sensor Technology
- Passive Infrared (PIR)
- Sensor Type
- Occupancy
- Time Delay
- 30s-30m
Standards and Certifications
- California Title 24
- Yes
- Listings
- UL listed/CSA certified, can be used to comply with ASHRAE 90.1, and Title 24, Part 6 occupancy sensing control requirements and FCC regulations, NOM certified
Type
- Product Type
- Occupancy Sensor
Warranty
- Warranty
- 5-Year Limited
Williams Automation sells Leviton parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
