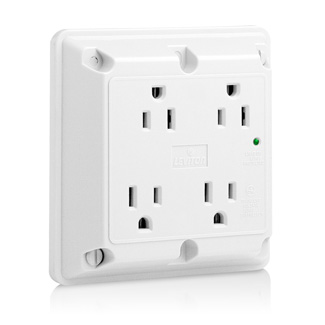

Leviton 5480-W
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
4-in-1 Surge Protective Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - White15 Amp, 4-in-1 Surge Protective Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade
Leviton 5480-W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 15 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 125 VAC
- Wire
- 3
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Clamp Nuts
- Zinc-Plated Steel
- Face Material
- Nylon
- Ground Clips
- Brass-Plated Steel
- Grounding Screw
- Brass-Plated Steel
- Line Contacts
- Brass Triple-Wipe
- Shutter Mechanism
- Delrin® Acetal
- Terminal Screws
- Brass-Plated Steel
- Yoke
- Zinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- 14-10 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Torque Range
- 14-16 inch pounds
Performance Data
- Diagnostics
- Indicator Light
- Joules Rating
- 720
- Maximum Surge Current, Per Mode (Per Phase)
- 27kA (L-N:18kA, L-G:9kA)
- MCOV
- 150V rms
- Nominal Discharge Current Rating
- 3kA
- Short Circuit Current Rating
- 5kA
- VPR
- L-N:500V, L-G:600V, N-G:500V
Product Features
- Body Material
- Nylon
- Brand
- 4-in-1
- Color
- White
- Device Type
- Quadruplex Receptacle
- Function
- Surge Protective
- Grade
- Commercial Specification Grade
- Grounding
- Grounding
- Noise Rejection
- -30dB at 500kHz-300MHz
- Termination
- Back or Side Wire
- UL1449 Impulse 6kV/500A L-N
- 330V
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- Agency Certifications
- UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
- ANSI
- C-73
- NEMA
- WD-6
- NOM
- 057
- UL Fed Spec WC-596
- File E13399
Warranty
- Warranty
- 5-Year Limited
