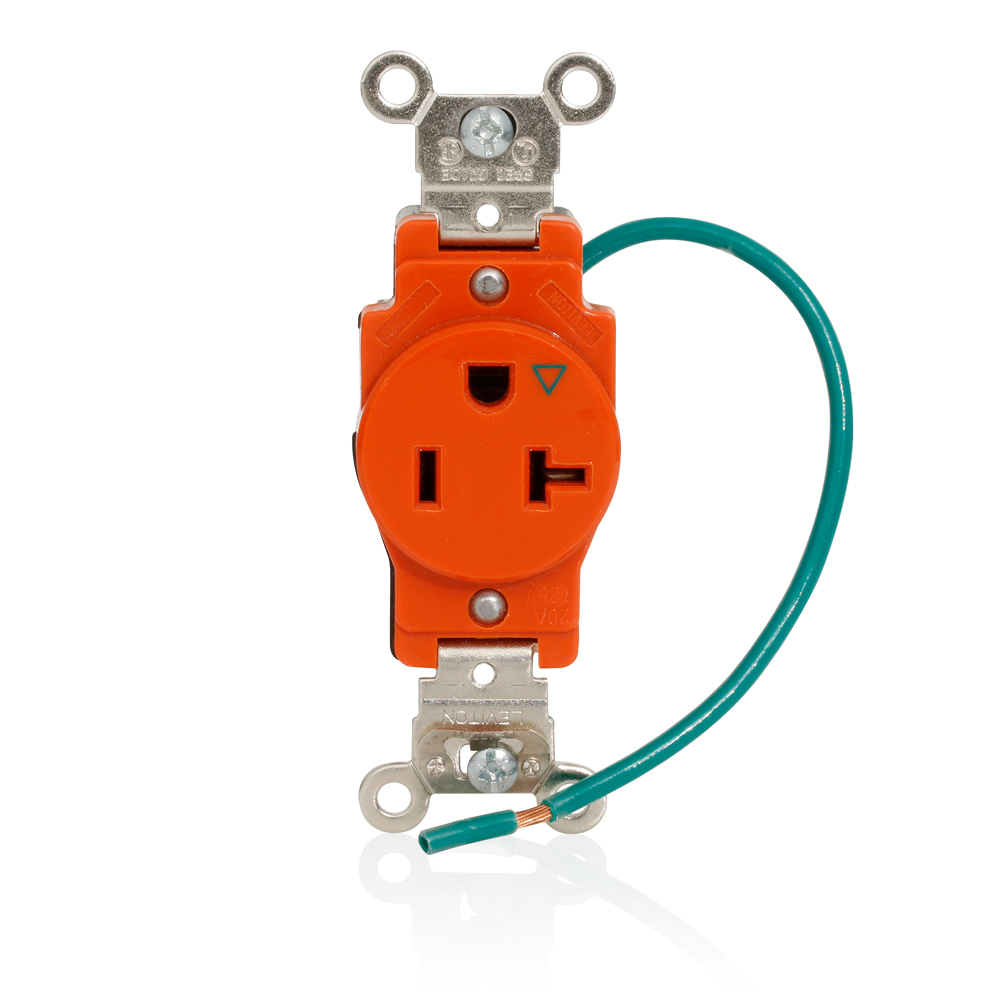

Leviton 5361-IG
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Isolated Ground Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Orange20 Amp Isolated Ground Single Receptacle/Outlet, Industrial Grade, Self-Grounding, Isolated Ground
Leviton 5361-IG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 20 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Self-Grounding
- Pole
- 2
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 125 VAC
- Wire
- 3
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Body Material
- Thermoplastic Nylon
- Clamp Nuts
- Zinc-Plated Steel
- Face Material
- Thermoplastic Nylon
- Ground Clips
- Brass-Plated
- Line Contacts
- Brass Triple-Wipe
- Strap Material
- Zinc-Plated Steel
- Terminal Screws
- Brass 10-32
- UL498
- File E13399
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- 14-10 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Termination
- Back or Side Wire
Product Features
- Color
- Orange
- Device Type
- Single Receptacle Outlet
- Feature 4
- Smooth Face
- Function
- Isolated Ground
- Grade
- Heavy-Duty Industrial Specification Grade
Standards and Certifications
- ANSI
- C-73
- CSA C22.2 No. 42
- File 152105
- NEMA
- WD-6
- NOM
- 057
- UL Fed Spec WC-596
- File E13399
- Warranty
- 10-Year Limited
