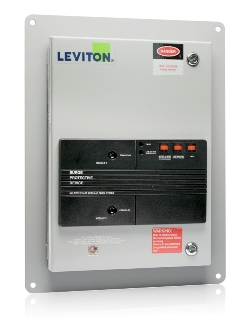

Leviton 52480-DM3
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
480VAC 3-Phase Delta, Surge Panel with Replaceable Surge Modules: 2480 (3), NEMA 12 Enclosure, UL 1449 4th Edition Compliant
Leviton 52480-DM3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Frequency
- 50/60Hz
- Recommended Circuit Breaker Rating
- 30A, 480V
- Surge Technology
- 40mm MOV Design
- Voltage Configuration
- 480 V, 3-Phase Delta
Environmental Specifications
- Enclosure
- Type 12
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -20⁰C to 40⁰C
- Relative Humidity
- 5% to 95% non-condensing
- Storage Temperature
- -4°F to 185°F (-20°C to 85°C)
Mechanical Specifications
- Connection Type
- Parallel-hardwired, feed-through dual wire terminal block: Accepts up to #3 AWG wire
- Surge Counter
- No
Performance Data
- Diagnostics
- LED
- Maximum Surge Current, Per Mode (Per Phase)
- 100kA (200kA)
- MCOV
- 550V AC
- Noise Rejection
- -20 to -40 dB at 5kHz-10MHz
- Nominal Discharge Current Rating
- 20kA
- Protection Mode
- 4-Mode
- Remote Monitoring
- Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
- Short Circuit Current Rating
- 100kA
- VPR
- L-L:2000V
Product Features
- Country Of Origin
- Mexico
- Diagnostics
- LED
- MCOV
- 550V AC
- Module No.
- (3) 2480
- Pole
- 3
- Protection Mode
- 4-Mode
- Replaceable Modules
- Yes
- Standards and Certifications
- UL1449 / CSA / ANSI/IEEE
- Surge Counter
- No
- UL1449 Impulse 6kV/500A L-N/L-G/N-G/L-L
- / / /1500
- Warranty
- 5-Year Limited
- Wire
- 4
Standards and Certifications
- ANSI/IEEE Category A, B & C
- C-62.41 & 62.45
- UL 1449 4th Edition
- cULus Listed Type 2
Warranty
- Warranty
- 5-Year Limited
