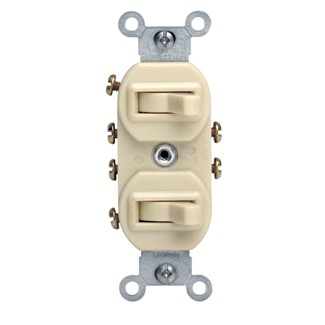

Leviton 5243
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
15 Amp, 120/277 Volt, Duplex Style 3-Way / 3-Way AC Combination Switch, Residential/Commercial Specification Grade, Non-Grounding, Side Wired - BrownDuplex Style 3-Way / 3-Way Combination Switch
Leviton 5243 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- Max. Amperage
- 12 Amp
Electrical Specifications
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Grade
- Residential/Commercial Specification Grade
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
- Pole
- 3
- Switch Amperage
- 15 Amp
- Switch Voltage
- 120/277V AC
- Temperature Rise
- Maximum 30 degrees C rise
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -40°C to 65°C
Material Specifications
- Actuator Material
- Thermoplastic
- Body Material
- Thermoplastic
- Strap Material
- Steel
Mechanical Specifications
- Product ID
- Stamped on Strap
- Terminal Accom.
- 14-12 AWG
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Termination
- Side
- Torque Range
- 14 – 18 in.-lbs
Product Features
- Amperage
- 15 A
- Color
- Brown
- Feature
- 3-Way / 3-Way
- Grounding
- Non-Grounding
- HP Rating
- 1/2HP-120V 2HP-240V-277V
- Product Type
- 2-Switch Combo
- Type
- Duplex Style Combination Switch
- Voltage
- 120/277 VAC
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- ANSI
- C-73
- CSA C22.2 No. 111
- File #152105
- NEMA
- WD-1 & WD-6
- NOM
- 057
- UL Standard
- UL 20
- Warranty
- 2-Year Limited
