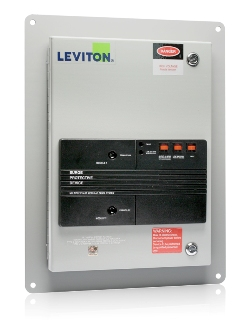

Leviton 52120-M1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
120 VAC Single Phase, Surge Panel with Replaceable Surge Modules: 2120 (1) & 8120-GN (1), NEMA 12 Enclosure, UL 1449 3rd Edition CompliantDISCONTINUEDSuggested Replacement: 42120-1
Leviton 52120-M1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Frequency
- 50/60Hz
- Recommended Circuit Breaker Rating
- 30A, 120V
- Surge Technology
- 40mm MOV Design
- Voltage Configuration
- 120 V, Single Phase
Environmental Specifications
- Enclosure
- Type 12
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -20⁰C to 40⁰C
- Relative Humidity
- 5% to 95% non-condensing
- Storage Temperature
- -4°F to 185°F (-20°C to 85°C)
Mechanical Specifications
- Connection Type
- Parallel-hardwired, feed-through dual wire terminal block: Accepts up to #3 AWG wire
- Surge Counter
- No
Performance Data
- Diagnostics
- Real Time Protection status LEDs & Audible Alarm
- Maximum Surge Current, Per Mode (Per Phase)
- 100kA (200kA)
- MCOV
- L-N:150V, L-G:300V, N-G:150V
- Noise Rejection
- -20 to -40 dB at 5kHz-10MHz
- Nominal Discharge Current Rating
- 20kA
- Protection Mode
- 2 Mode
- Remote Monitoring
- Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
- Short Circuit Current Rating
- 100kA
- VPR
- L-N:1000V, L-G:1500V, N-G:700V
Product Features
- Replaceable Modules
- Yes
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- ANSI/IEEE Category A, B & C
- C-62.41 & 62.45
- UL1449 3rd Edition
- CSA Certified and UL Listed Type 2
Warranty
- Warranty
- 5-Year Limited
