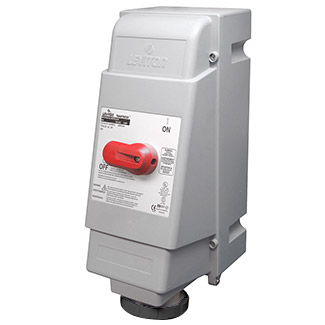

Leviton 460MI5W
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
60 Amp, 600 Volt 3-Phase, IEC 309-1 & 309-2, 3P, 4W, Mechanical Interlock North American Pin & Sleeve Receptacle, Hub Sold Separately (See Leviton Cat Number HUB-xxx), Industrial Grade, IP67, Watertight, Non-Fused - BLACK
Leviton 460MI5W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- At Rated Voltage
- 40 HP
Electrical Specifications
- Amperage
- 60 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Dielectric Voltage
- 1000 V plus rated voltage for 1-minute
- Endurance
- 6,000 cycles inductive motor type load
- Phase
- 3-Phase
- Pole
- 3
- Voltage
- 600 VAC
- Wire
- 4
Environmental Specifications
- Dust
- Type 12K per UL 50
- Flammability
- Rated V-0 per UL 94
- Gasket Aging
- 70C for 168 hours
- Hosedown
- Type 4X per UL 50
- IP Rating
- IP67/IP69K
- Operating Temperature
- -40°C to 60°C
- Rain
- Type 3R per UL 50
- UV Resistance
- Exposed plastic materials are UV stabilized
Material Specifications
- Actuator Material
- Zinc-Coated Steel
- Conduit Grounding Plate
- Zinc-Coated Steel
- Contact Carrier
- Nylon
- Cover Eyelet
- Nickel-Plated Brass
- Cover Locking Mechanism
- Valox 357
- Cover with Arm
- Valox 357
- Gasket Material
- Chloroprene
- Ground Buss
- Brass
- Ground Contacts
- Brass
- Handle Material
- Valox 357
- Housing Material
- Valox 357
- Housing Screws
- Stainless Steel
- Internal Screws
- Zinc-plated steel
- Locking Ring
- Valox 357
- Neutral Buss
- Brass
- Phase and Ground Sleeves
- Brass
- Switch Contacts
- Cadmium-Free Silver Alloy
- Switch Material
- Reinforced Nylon
- Switch Terminal Contacts
- Brass
Mechanical Specifications
- Cold Impact
- Same as above, after conditioning to -35C
- Crush Test
- 100 lbs
- Impact
- 1.2 lb ball dropped from 5 ft
- Mold Stress Relief
- 70ºC for 7 hours
- Pullout
- 18 lb pull on internal wires
- Strength of Insulating Base and Support
- 110% of specified tightening torque on terminal screws
Product Features
- Color
- Black
- Configuration
- North American
- Device Type
- Mechanical Interlock
- Series
- Standard Series
Specifications
- RoHS Compliant
- Yes
Standards and Certifications
- CE Marking
- Per low voltage directives 73/23/EEC, 93/68/EEC
- CSA
- C22.2
- IEC Rating
- 60309-1 and 60309-2
- UL
- 231 & 1686
- UL 508
- Non-Fused
- Warranty
- 2-Year Limited
