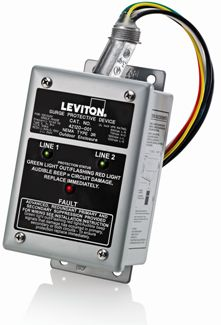

Leviton 42120-1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
120/240V Single Phase, Surge Panel, Enhanced Noise Filtering, NEMA 3R Enclosure, UL 1449 3rd Edition Type 2Type 2 Single Phase Surge Panel with Enhanced Noise Filtering
Leviton 42120-1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- EMI/RFI Noise Rejection
- (-30 to -40 @ 10K - 10MHz)
- Frequency
- 50/60Hz
- Recommended Circuit Breaker Rating
- 20A, 120/240V
- Surge Technology
- 40mm MOV Design
- Voltage Configuration
- 120/240 V, Single (Split) Phase
Environmental Specifications
- Enclosure
- Type 3R
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -10°C to 60°C
- Relative Humidity
- 5% to 95% non-condensing
- Storage Temperature Range
- -20C to 85C
Material Specifications
- Outer Enclosure
- Powder Coated Steel
Mechanical Specifications
- Connection Type
- Parallel - Hardwired via 12 AWG Wire
- Diagnostics
- Real Time Protection status LEDs & Audible Alarm
- Remote Monitoring
- Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC
- Surge Counter
- No
Performance Data
- Maximum Surge Current, Per Mode (Per Phase)
- 80kA (160kA)
- MCOV L-G
- 300
- MCOV L-L
- 254
- MCOV L-N
- 150
- MCOV N-G
- 150
- Nominal Discharge Current Rating
- 3kA
- Short Circuit Current Rating
- 100kA
- VPR L-G
- 1200
- VPR L-L
- 1000
- VPR L-N
- 800
- VPR N-G
- 700
Product Features
- Replaceable Modules
- No
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- ANSI/IEEE Category A, B & C
- C-62.41 & 62.45
- UL1449 3rd Edition
- cULus Listed Type 2
Warranty
- Warranty
- 5-Year Limited
