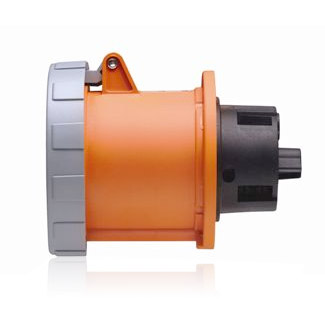

Leviton 4100R12W
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
100 Amp, 125/250 Volt, 3P, 4W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - ORANGE
Leviton 4100R12W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 100 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Dielectric Voltage
- 2000V for 1 min.
- Endurance
- Up to 250 connects and disconnects, under load, at full rated current and voltage
- Insulation Resistance
- 500V for 1 min; >= 5MΩ
- Pole
- 3
- Temperature Rise
- Max 30C after 50 cycles OL at 150 percent rated current
- Voltage
- 125/250 VAC
- Wire
- 4
Environmental Specifications
- Corrosion Resistance
- Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
- Flammability
- Rated V-0 per UL 94
- IP Rating
- IP67/IP69K
- Moisture Resistance
- Per UL 1682, immersed for 24 hours in 5cm of 25°C water
Material Specifications
- Arm Spring
- Performance Grade Stainless Steel
- Body Material
- Valox 357
- Cover Eyelet
- Nickel-Plated Brass
- Cover with Arm
- Valox 357
- Gasket Material
- Chloroprene
- Mounting Flange
- Valox 357
- Phase and Ground Sleeves
- Brass
- Sleeve Spring
- Stainless Steel
- Terminal Screws
- Stainless Steel
Mechanical Specifications
- Crush Test
- 250lbs for 1 min after -25°C for 6 hrs
- Impact Resistance
- Drop from 30" 8 times after conditioning to -25°C for 6 hrs
- Minimum Withdrawal Force
- 20lbs
Product Features
- Color
- Orange
- Configuration
- North American
- Device Type
- Receptacle
- Series
- Standard Series
Standards and Certifications
- CE Marking
- Per low voltage directives 73/23/EEC, 93/68/EEC
- CSA Certified
- C22.2 No 182.1
- IEC Rating
- 60309-1 and 60309-2
- UL Listed
- 1682 and 1686
- Warranty
- 2-Year Limited
