Description

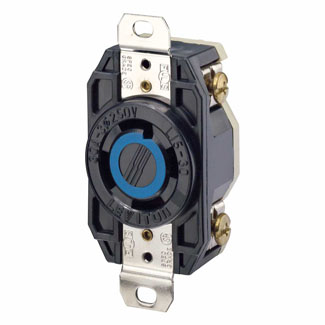

Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Leviton 2720 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 30 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Grounding
- Phase
- 3-Phase
- Pole
- 3
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 250 VAC
- Wire
- 4
Environmental Specifications
- Environment
- Corrosive
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Body Material
- Nylon
- Cover Material
- Valox 357
- Grounding Screw
- Chromated Brass
- Line Contacts
- Brass .040 Thick
- Strap Material
- Nickel-Plated Brass
- Terminal Clamps
- Nickel-Plated Brass
- Terminal Screws
- Chromated Brass
Mechanical Specifications
- Cord Range
- 0.595 to 1.150
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- 14-8 AWG
- Terminal ID
- Marked on Device
- Termination
- Back & Side
Product Features
- Base Material
- Valox
- Brand
- V-0-Max
- Color
- Black
- Device Type
- Locking Receptacle
- Face Material
- Ultramid
Specifications
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA
- C22.2 No. 42
- NEMA
- WD-6
- NOM
- 057
- UL
- 498
- UL Fed Spec
- W-C-596
- Warranty
- Limited Lifetime Warranty Warranty
