Leviton 25249-FBA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

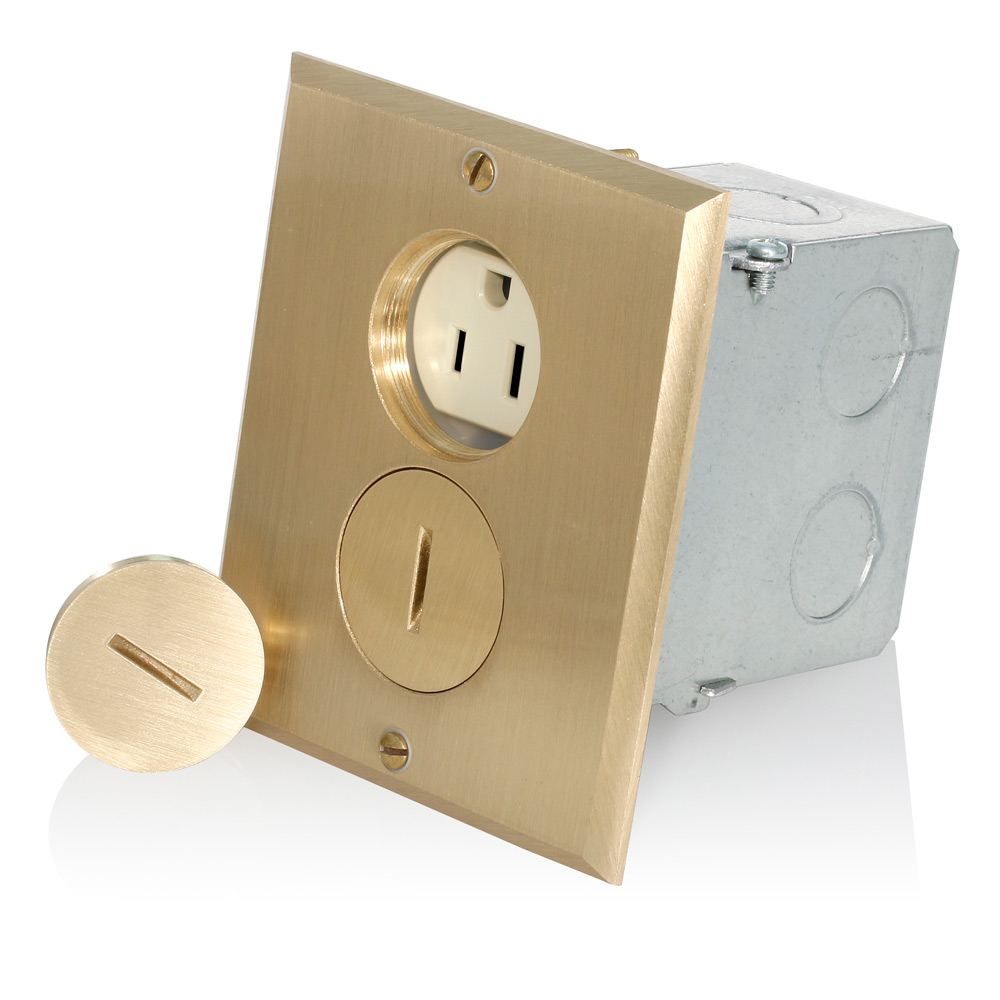

1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Floor Mtg Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Back & Side Wired, Steel Strap - IVORY15 Amp 1-Gang Floor Box Assembly, Commercial Grade, Self-Grounding
Leviton 25249-FBA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
Electrical Specifications
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Temperature Rise
- Max 30C after 50 cycles OL at 150 percent rated current
- Wire
- 3
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Body Material
- Nylon
- Clamp Nuts
- Zinc-Plated Steel
- Face Material
- Nylon
- Floorplate Material
- Solid Brass 0.060 In Thick
- Ground Clips
- Brass-Plated
- Grounding Screw
- Brass 8-32
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Strap Material
- Zinc-Plated Steel
- Terminal Screws
- Brass 8-32
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Termination
- Back & Side
Product Features
- Amperage
- 15 A
- Color
- Ivory
- Grounding
- Self Grounding
- Type
- Wood Frame
- Voltage
- 125 VAC
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- ANSI
- C-73
- Applicable Standards
- UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
- Certification/Listing
- cCSAus, NOM-ANCE
- NEMA
- WD-1 & WD-6
