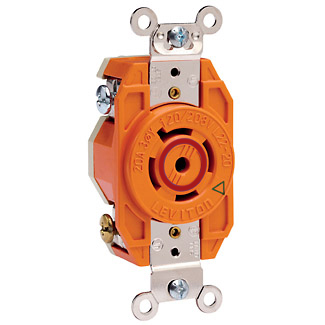

Leviton 2520-IG
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.20 Amp, 277/480 Volt 3-Phase Y, NEMA L22-20R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE
Leviton 2520-IG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- At Rated Voltage
- 5 HP
Electrical Specifications
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase WYE
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
Environmental Specifications
- Environment
- Corrosive
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Body Material
- Valox 357
- Clamp Nuts
- Nickel-Plated Brass
- Cover Material
- Valox 357
- Ground Clips
- Nickel-Plated Brass
- Ground Contacts
- Brass
- Grounding Screw
- Chromated Brass
- Line Contacts
- Brass .040 Thick
- Terminal Clamps
- Zinc-Plated Brass
- Terminal Screws
- Brass 10-32
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- 14-8 AWG
- Terminal ID
- Brass-Hot, Green-Ground, White-Neutral
Product Features
- Amperage
- 20 A
- Base Material
- Nylon
- Brand
- V-0-Max
- Color
- Orange
- Face Material
- Nylon
- Feature
- Isolated Ground
- Grounding
- Isolated Ground
- Pole
- 4
- Standards and Certifications
- UL/CSA
- Strap Material
- Nickel-Plated Brass
- Termination
- Back & Side
- Voltage
- 277/480 VAC
- Wire
- 5
Specifications
- Country of Origin
- Mexico
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA
- C22.2 No. 42
- NEMA
- WD-6
- NOM
- 057
- UL
- 498
- UL Fed Spec
- W-C-596
Warranty
- Warranty
- Limited Lifetime Warranty
