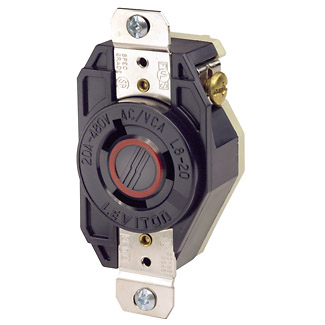

Leviton 2340
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.20 Amp, 480 Volt, NEMA L8-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Leviton 2340 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electrical Specifications
- Amperage
- 20 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Grounding
- Pole
- 2
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 480 VAC
- Wire
- 3
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Body Material
- Nylon
- Cover Material
- Valox 357
- Ground Contacts
- Brass
- Grounding Screw
- Chromated Brass
- Line Contacts
- Brass
- Strap Material
- Nickel-Plated Brass
- Terminal Clamps
- Nickel-Plated Brass
- Terminal Screws
- Chromated Brass
Mechanical Specifications
- Cord Range
- 0.595 to 0.895
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- 14-8 AWG
- Terminal ID
- Marked on Device
- Termination
- Back & Side
Product Features
- Base Material
- Valox
- Color
- Black
- Face Material
- Ultramid
Specifications
- Country of Origin
- Mexico
Standards and Certifications
- ANSI
- C-73
- CSA
- C22.2 No. 42
- NEMA
- WD-1 & WD-6
- NOM
- 057
- UL
- 498
- UL Fed Spec
- W-C-596
Warranty
- Warranty
- Limited Lifetime Warranty
