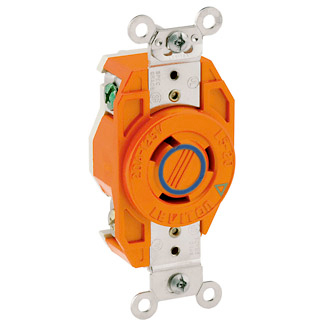

Leviton 2320-IG
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.20 Amp, 250 Volt, NEMA L6-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE
Leviton 2320-IG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- Horsepower Rating
- 2 HP
Electrical Specifications
- Amperage
- 20 A
- Current Limiting
- Full Rated Current
- Dielectric Voltage
- Withstands 2000V per UL498
- Grounding
- Isolated Ground
- Pole
- 2
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Voltage
- 250 VAC
- Wire
- 3
Environmental Specifications
- Environment
- Corrosive
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 60°C
Material Specifications
- Body Material
- Valox 357
- Cover Material
- Valox 357
- Ground Clips
- Nickel-Plated Brass
- Ground Contacts
- Brass
- Grounding Screw
- Chromated Brass
- Line Contacts
- Brass
- Strap Material
- Nickel-Plated Brass
- Terminal Screws
- Chromated Brass
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- 14-8 AWG
- Terminal ID
- Marked on Device
- Termination
- Back & Side
- Torque Range
- 14-16 in-lbs
Product Features
- Base Material
- Valox
- Brand
- V-0-Max
- Color
- Orange
- Face Material
- Valox
Specifications
- Country of Origin
- Mexico
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA
- C22.2 No. 42
- NEMA
- WD-1 & WD-6
- NOM
- 057
- UL
- 498
Warranty
- Warranty
- Limited Lifetime Warranty
