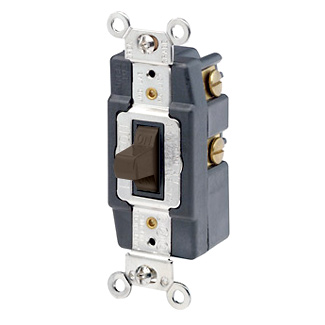

Leviton 1256
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
15 Amp, 120/277 Volt, Toggle Double-Throw Ctr-OFF Momentary Contact Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Grounding, Back & Side Wired, - Brown
Leviton 1256 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- Max. Amperage
- 12 Amp
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Endurance
- 50,000 cycles minimum
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
- Temperature Rise
- Maximum 30 degrees C rise
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -40°C to 65°C
Material Specifications
- Base Material
- Thermoplastic
- Contact Material
- Silver Alloy
- Cover Material
- Thermoplastic
- Ground Clips
- Brass
- Grounding Screw
- Brass 8-32
- Terminal Screws
- Brass 8-32
- Toggle
- Polycarbonate
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Termination
- Back or Side Wire
Product Features
- Body Material
- Thermoplastic
- Color
- Brown
- Device Type
- Toggle Switch
- Feature
- Momentary Contact CTR OFF
- Function
- Single-Pole
- Grade
- Extra Heavy-Duty Industrial Specification Grade
- Grounding
- Self-Grounding
- HP Rating
- 1/2HP-120V 2HP-240V-277V
- Strap Material
- Steel
- Voltage
- 120/277 VAC
Specifications
- Country of Origin
- Mexico
- RoHS Compliant
- Yes
Standards and Certifications
- ANSI
- C-73
- CSA C22.2 No. 111
- File #152105
- NEMA
- WD-1 & WD-6
- NOM
- 057
- RoHS
- Compliant
- UL Fed Spec WS896E
- File #E7458
- UL Standard
- UL 20
- Warranty
- 10-Year Limited
