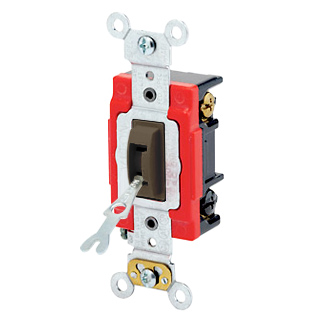

Leviton 1223-2L
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.20 Amp, 120/277 Volt, Toggle Locking 3-Way AC Quiet Switch, Industrial Grade, Self Grounding, Back & Side Wired, - Brown
Leviton 1223-2L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
AC Horsepower Ratings
- HP Rating
- 1HP-120V 2HP-240V
- Max. Amperage
- 16 Amp
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Endurance
- 50,000 cycles minimum
- Grounding
- Self-Grounding
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
- Temperature Rise
- Maximum 30 degress C rise
- Voltage
- 120/277 VAC
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Operating Temperature
- -40°C to 65°C
Material Specifications
- Base Material
- Thermoplastic
- Contact Material
- Silver Alloy
- Cover Material
- Thermoplastic
- Ground Clips
- Brass
- Grounding Screw
- Brass 8-32
- Strap Material
- .048” Thick Galvanized Steel
- Terminal Screws
- Brass 8-32
- Toggle
- Polycarbonate
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Termination
- Back or Side Wire
Product Features
- Color
- Brown
- Device Type
- Tamper-Resistant Toggle Switch
- Function
- 3-Way
- Grade
- Extra Heavy-Duty Industrial Specification Grade
Standards and Certifications
- ANSI
- C-73
- CSA C22.2 No. 111
- File #152105
- NEMA
- WD-1 & WD-6
- NOM
- 057
- RoHS
- Compliant
- UL Fed Spec WS896E
- File #E7458
- UL Standard
- UL 20
- Warranty
- 10-Year Limited
