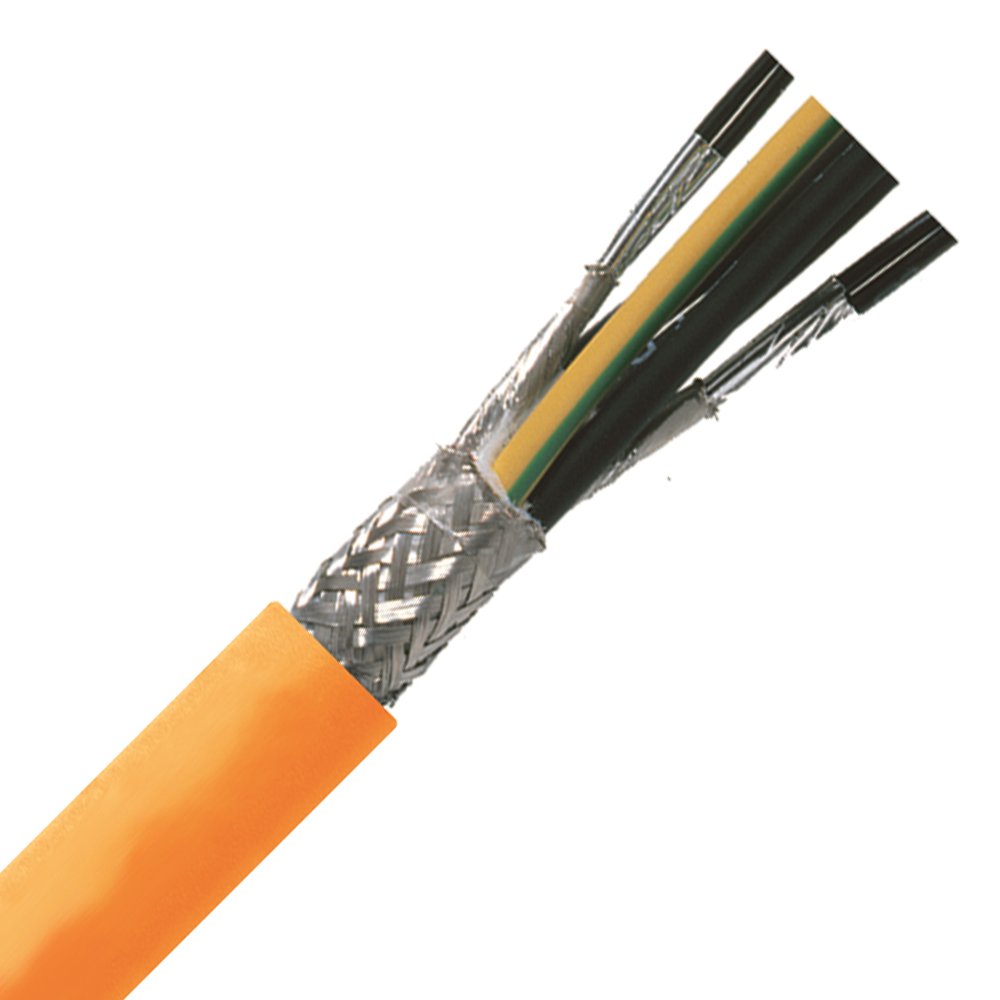

LAPP USA 0027963
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
LAPP USA 0027963 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable Construction
- Cable Construction (Wire Gauge & Conductor Count)
- 8 AWG/4C+(16 AWG/1Pr)
- Conductor #1 - Wire Gauge (AWG) / Conductor Cross-Section (mm2)
- 8 AWG (10 mm²)
- Conductor Pair #1 - Wire Gauge (AWG) / Conductor Cross-Section (mm2)
- 16 AWG (1.5 mm²)
- Ground Connector
- yes
- # of Conductor Pairs - AWG Size #1
- 1
- Wire AWG #1 - # of Conductors
- 4
Electrical Properties
- Nominal Voltage
- 1000V
Installation Environment
- Installation Type for Temperature Range
- for continuous flexing
- Maximum Operating Temperature
- +80°C
- Minimum Operating Temperature
- -50°C
- Operating Temperature Range
- -40°C to +80°C
Materials of Construction
- Cable Shielding Type/Material
- Overall non-woven wrapping and tinned copper braid (85% coverage)
- Conductor Material
- Extra fine bare copper
- Conductor Pairs Shielding Type/Material #1
- Tinned copper braid (85% coverage)
- Conductor Stranding
- Class 6 super fine wire
- Insulation Material
- Polypropylene
- Jacket Color
- Orange
- Jacket Material
- PUR
- Shielded Conductors Pairs? (Y/N) #1
- Pairs
- Shielding Cable
- Shielding
Physical Properties
- Bend Radius Installation Type
- for continuous flexing
- Ethernet Category
- 96
- Minimum Bend Radius
- 7.5 x cable diameter
Williams Automation sells LAPP USA parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
