Killark XSX-42
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

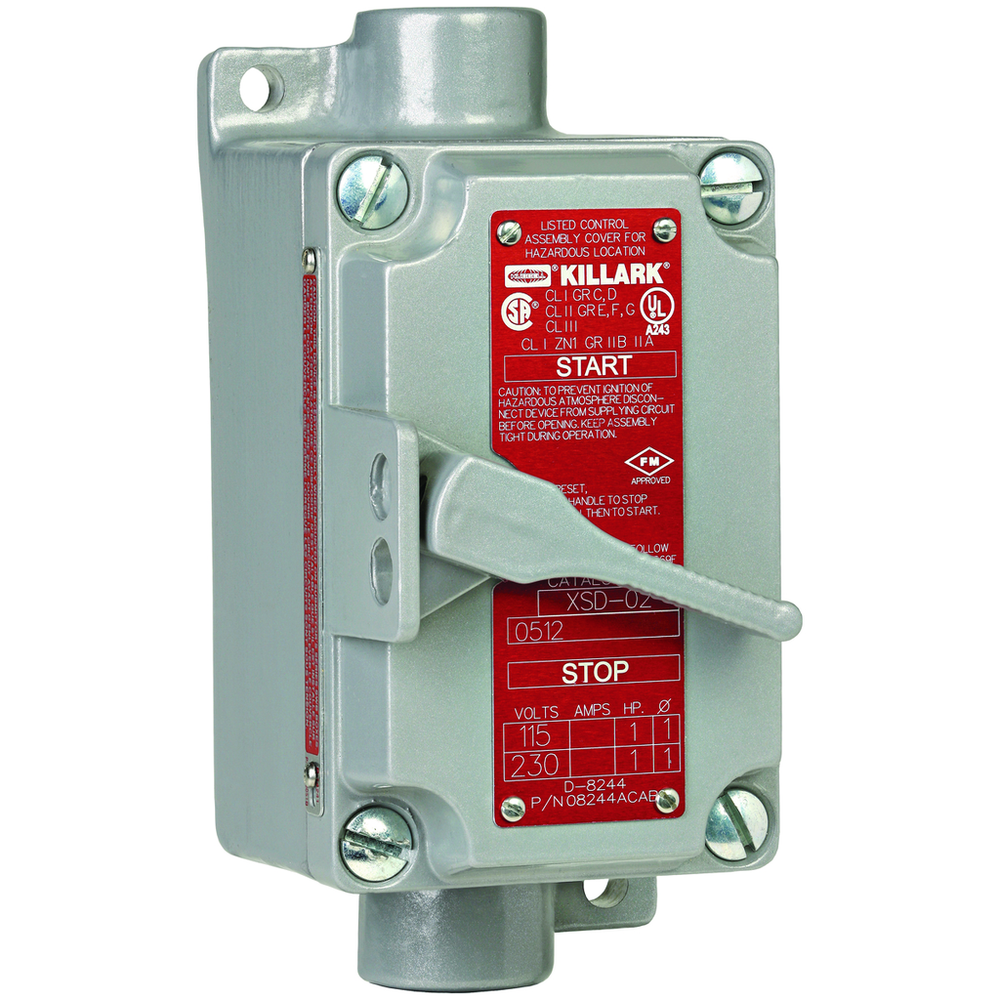

XSX Series - Aluminum Feed-Thru Single Gang 2-Pole, Single Phase Manual Motor Starting Switch Unit - Without Overload Protection - Hub Size 1/2InchXSX Series - Aluminum Feed-Thru Single Gang 2-Pole, Single Phase Manual Motor Starting Switch Unit - Without Overload Protection - Hub Size 1/2Inch
Killark XSX-42 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Application
- Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. XSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is requi
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936933481
- Class Code
- D25
- Country of Origin
- US
- CSA File Number
- LR11714
- Description - Invoice
- SWITCH 1GANG 2P F-THRU 1/2"
- Dimensions
- 7.5 in x 7.875 in x 4.125 in
- Each - Width
- 7.875 in
- Freight Class Code
- 06316009
- Frequency Rating
- 60 Hz
- Gross Weight with Packaging
- 2.49
- Harmonization Code
- 8536509040
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Height
- 4.125 in
- Horsepower - Maximum
- 3
- Image Actual Or Representative
- R
- Lead Time
- 15 wk
- Length
- 7.5 in
- Master Pack Description
- Each
- Material
- Copper-free aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Power Factor
- 0.9
- Returnable Indicator
- Yes
- Series
- XSX
- Size
- 7.5 in x 7.875 in x 4.125 in
- Special Features
- Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Provisions for padlocking switch in either "ON" or "OFF" position is standard.
- Sub Class Code
- D25D253
- Type
- Aluminum Manual Motor Starting Switch Without Overload Protection
- Voltage Rating
- 600 V
- Width
- 7.875 in
