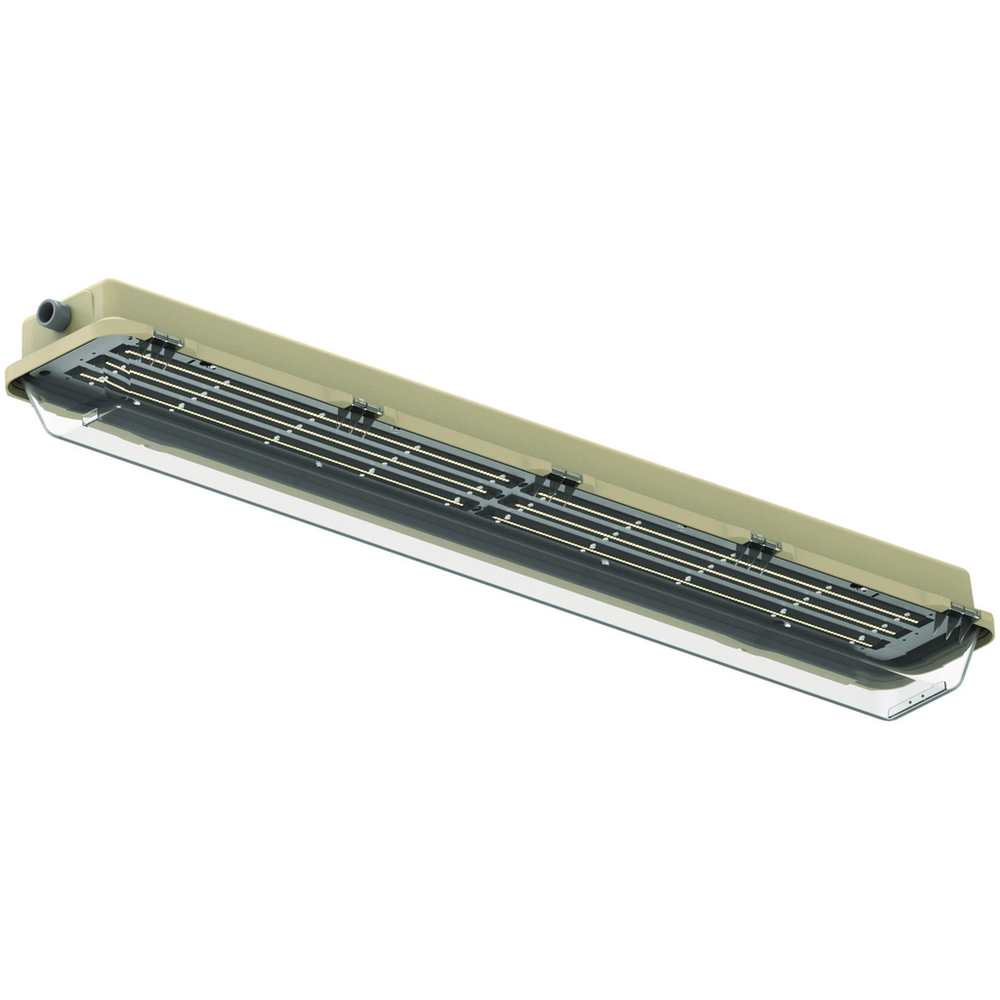

Killark LZ2NL12034
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
LZ2NL Series Linear LED fixtures are made of a fiberglass reinforced polyester body with an impact resistant polycarbonate lens and use energy efficient LED's that are suitable for use in harsh and hazardous environments.LZ2NL Series LED Linear, Hazardous Rated Watt, 347-480 VAC 5000K, 16010 Lumens
Killark LZ2NL12034 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Application
- Linear LED luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, and NEMA 3, 4X IP66 areas where wind, water, snow or high ambients can be expected. They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC/CEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, garages, storage facilities, tunnels, and grain/food facilities.
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936122243
- Class Code
- D20
- Color
- White
- Country of Origin
- US
- Description - Invoice
- LZ2 120W LED 125-250VDC FRP 4'
- Dimensions
- 4.5 in x 1 in x 6.5 in
- Each - Width
- 1.000 in
- Finish
- Natural
- Finish Type
- Natural
- Freight Class Code
- 10970009
- Frequency Rating
- 50/60 Hz
- Gross Weight with Packaging
- 25
- Harmonization Code
- 9405108020
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Height
- 6.5 in
- Image Actual Or Representative
- A
- IP Rating
- IP66
- Lead Time
- 30 wk
- Length
- 4.5 in
- Light Source
- LED
- Lumen Range
- 15,001-25,000 lm
- Lumens
- 16010
- Lumens Per Watt
- 1334.2
- Master Pack Description
- Each
- Material
- Polyester, Fiberglass Reinforced
- Mounting
- Pendant;Surface
- Mounting Type
- Pendant;Surface
- MSDS Flag
- No
- Optic Type
- Polycarbonate Lens - Clear
- Order Multiple
- 1 EA
- Reflector Type
- 2 & 3 Lamp Reflector Plate
- Returnable Indicator
- Yes
- Series
- LZ2NL
- Special Features
- NEMA 44X & IP66 rated enclosure. Housing - one piece fiberglass reinforced polyester. Lens - clear Lexan® impact resistant polycarbonate lens (Lexan is a registered trademark of SABIC). Two 3/4" NPT Hubs - one at each end (includes one 3/4" close-up plug and two 3/4"x1/2" reducers for maximum user flexibility - hubs aluminum). Many midpower LEDs blend light to simulate fluorescent tube. Crisp White Light for Excellent Color Rendering - chromaticity 5000K (CCT); approx. 70 CRI. Energy Savings - high lumens per watt. LED Array Life - to 212,000 maintenance-free hours to 70% initial lumens. Ambient Suitability -40ºC to 55ºC up to 120W. Instant On - including after power interruption. Solder-less LED Board Connections - vibration resistant. LM80-08* measurement of lumen maintenance for LED light sources. LM79-08* certified "absolute" photometry, including chromaticity color for solid state lighting. L70 Values - industry nomenclature for hours of use to 70% of initial lumens - TM-21* & calculated.
- Sub Class Code
- D20D202
- Type
- Non-Metallic Linear LED Fixture
- Voltage Rating
- 120-277 VAC
- Wattage
- 12 W
- Width
- 1.000 in
