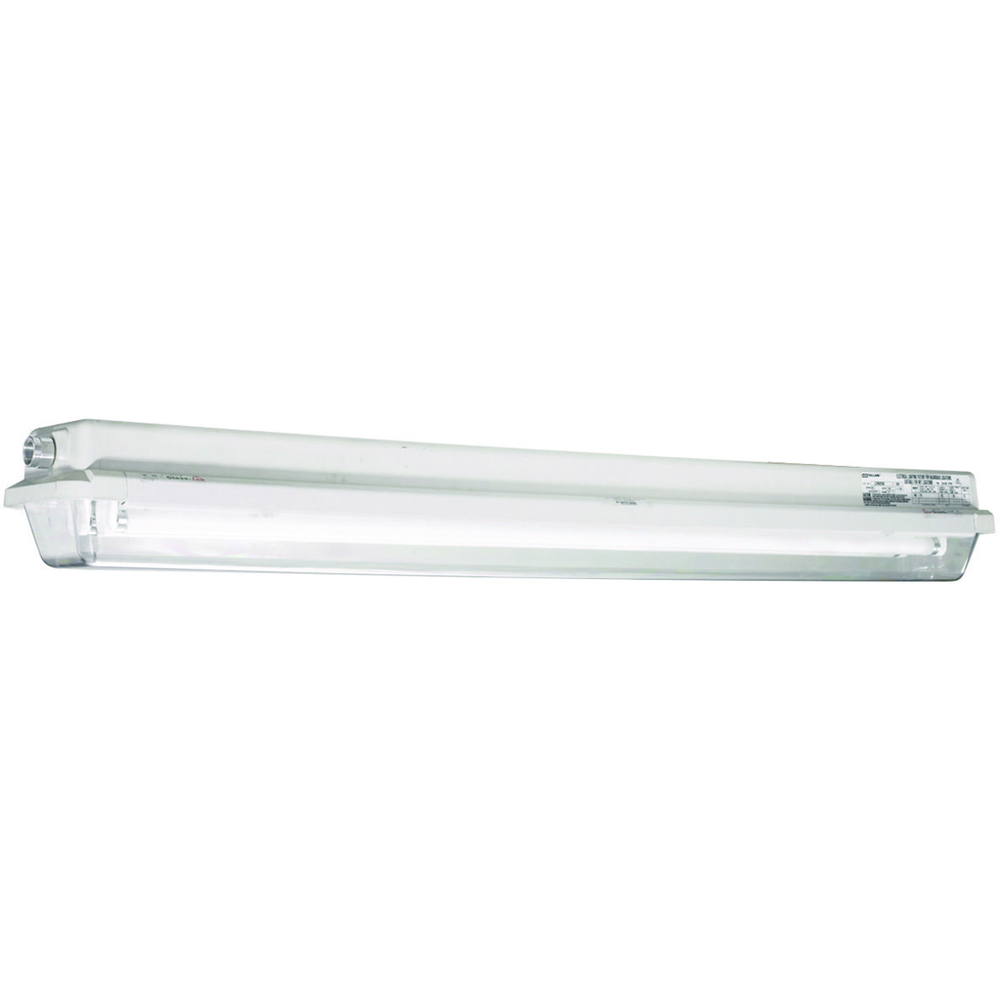

Killark LZ2N54233
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
LZ2S Series - Non-Metallic 54 Watt Fluorescent Light Fixture (Two 4-Foot Lamps Not Included) - Double-Ended Lamp Type - 347-480V - Hub Size 3/4 Inch NPTLZ2S Series - Non-Metallic 54 Watt Fluorescent Light Fixture (Two 4-Foot Lamps Not Included) - Double-Ended Lamp Type - 347-480V - Hub Size 3/4 Inch NPT
Killark LZ2N54233 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 0.35 A
- Application
- LINEARLITE rugged non-metallic fluorescent fixtures are suitable for wet, harsh, and hazardous locations. Use where enclosed and gasketed fixtures are required to withstand exposure to moisture, dust, and corrosives. The LZ2N Series can also be used in Class I, Division 2, and Zone 2 hazardous vapors and in Class II areas where combustible dusts may exist. Typical areas used are in refineries, chemical plants, waste water and sewage treatment facilities, as well as in tunnels, food processing and coastal areas.
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936094267
- Class Code
- D20
- Color
- White
- Country of Origin
- US
- Description - Invoice
- LINEARLITE 4' 2LAMP 54W FL 347-480V 40C
- Dimensions
- 4.5 in x 1 in x 6.5 in
- Each - Width
- 1.000 in
- Finish
- Natural
- Finish Type
- Natural
- Freight Class Code
- 06316009
- Frequency Rating
- 50/60 Hz
- Gross Weight with Packaging
- 24.5
- Harmonization Code
- 9405108020
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Height
- 6.5 in
- Image Actual Or Representative
- A
- IP Rating
- IP66
- Lamp Type
- T5
- Lead Time
- 40 wk
- Length
- 4.5 in
- Light Source
- Linear Fluorescent
- Master Pack Description
- Each
- Material
- Polyester, Fiberglass Reinforced
- Mounting
- Pendant;Surface
- Mounting Type
- Pendant;Surface
- MSDS Flag
- No
- Number of Lamps
- 0
- Number Of Lamps
- 0
- Optic Type
- Polycarbonate Lens - Clear
- Order Multiple
- 1 EA
- Reflector Type
- Steel Reflector
- Returnable Indicator
- Yes
- Series
- LZ2N
- Special Features
- Housing-one piece fiberglass reinforced polyester, NEMA 4X and IP66 rated. Lexan clear lens, impact resistant polycarbonate. Two 3/4" NTP aluminum hubs - one at each end (includes one 3/4" close-up plug and two 3/4" x 1/2" reducers for maximum user flexibility). Two 1/4"-20 aluminum bushings furnished in top of fixture for threaded rod. 4' luminaire. Lamp type - linear 54W. Electronic ballast standard.
- Sub Class Code
- D20D202
- Type
- Non-Metallic Fluorescent Fixture
- Voltage Rating
- 120-277 VAC
- Wattage
- 54 W
- Width
- 1.000 in
