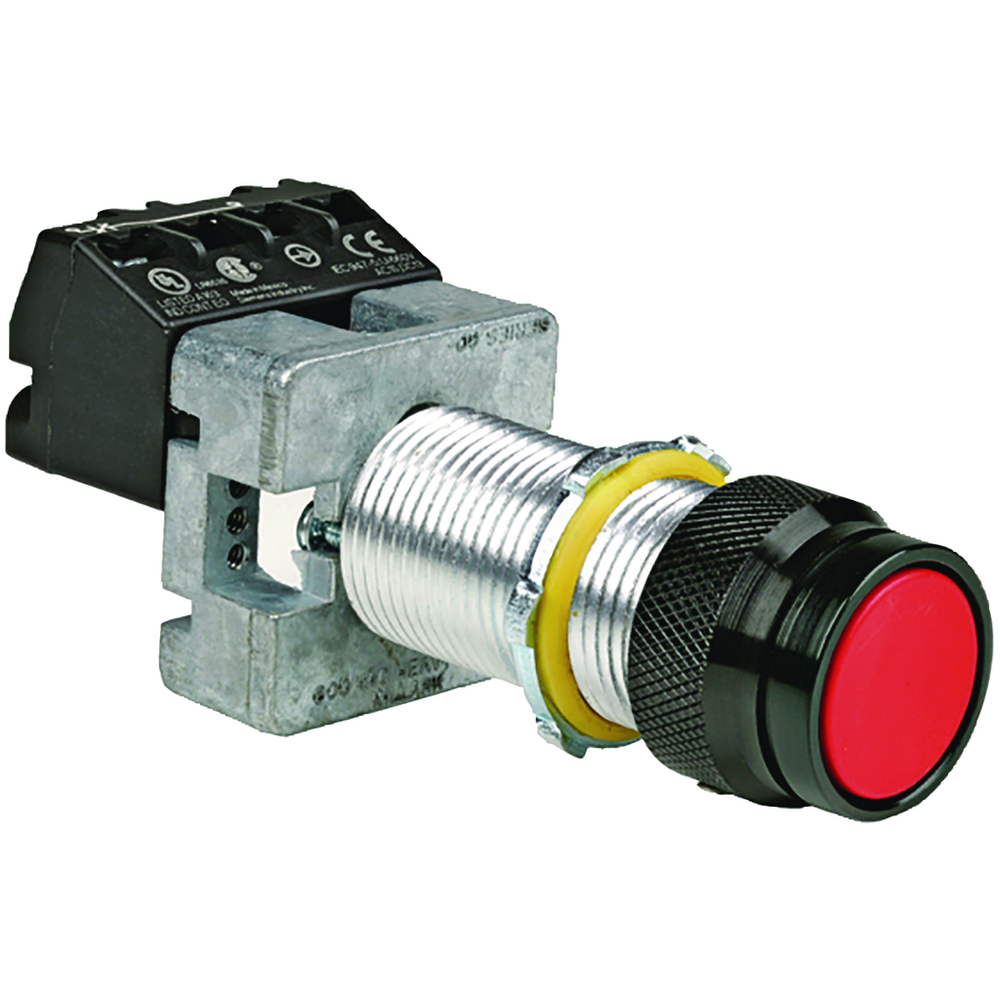

Killark GO21-RZ2B
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.G Series - Aluminum Short Momentary Contact Single Push Button Operator- Red Button With "Start"/"Stop" Nameplate - 1NC Contact Rating
Killark GO21-RZ2B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Action
- Momentary
- Actuator
- Single Pushbutton
- Ambient Temp. Range
- UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
- Amperage Rating
- 10 A
- Application
- G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936222844
- Class Code
- D25
- Contact Rating
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
- Country of Origin
- US
- CSA File Number
- LR11714
- Description - Invoice
- OM PB SHORT RED 1NC CONTACTS
- Dimensions
- 6.75 in x 2.25 in x 1.875 in
- Each - Width
- 2.250 in
- Freight Class Code
- 06316009
- Frequency Rating
- 50/60 Hz
- Gross Weight with Packaging
- 0.49
- Harmonization Code
- 8536509035
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Height
- 1.875 in
- Image Actual Or Representative
- R
- Lead Time
- 10 wk
- Length
- 6.75 in
- Master Pack Description
- Each
- MSDS Flag
- No
- Number of Poles
- 1
- Number Of Poles
- 1
- Order Multiple
- 1 EA
- Returnable Indicator
- Yes
- Series
- GO
- Size
- 6.75 in x 2.25 in x 1.875 in
- Special Features
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more.Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use.UL Listed and CSA Certified
- Sub Class Code
- D25D250
- Type
- Push Button
- UL File Number
- E12379
- Width
- 2.250 in
