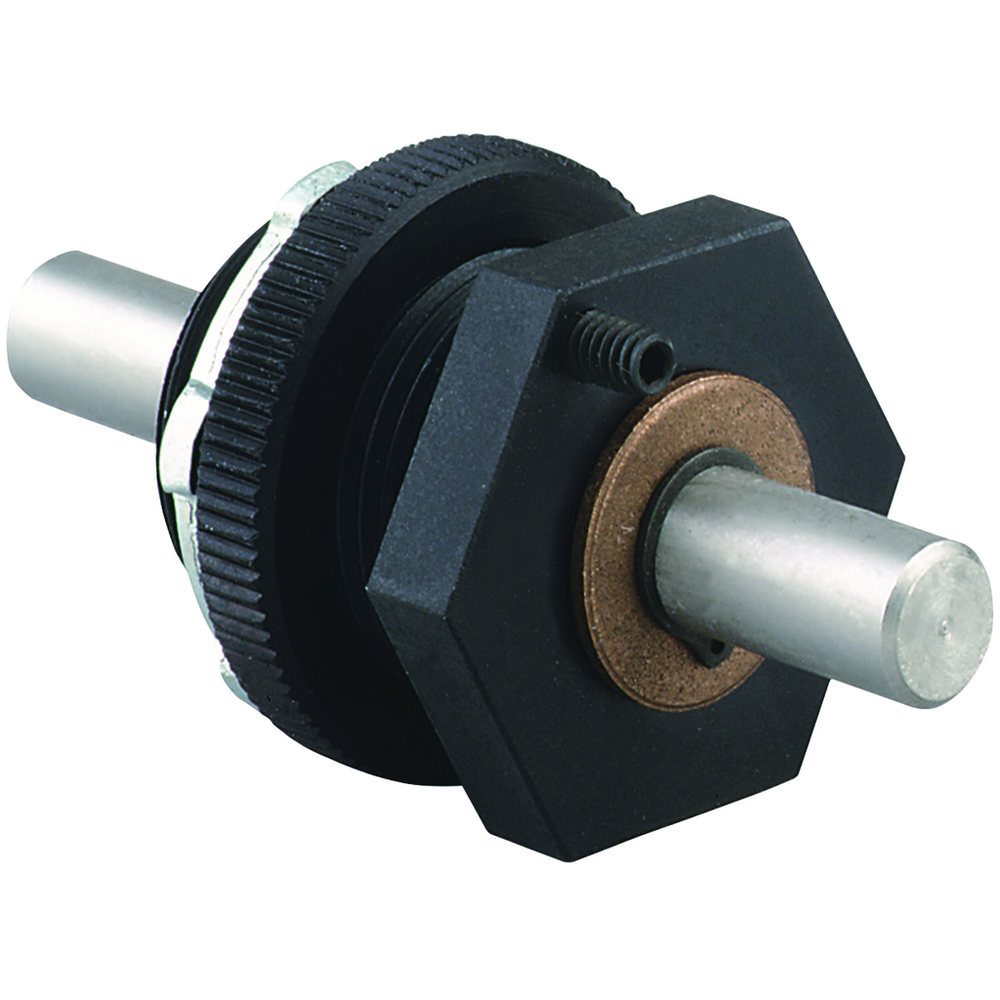

Killark GO19

Certifications

• EU RoHS Indicator
  • Contact Manufacturer

Specifications

• Action
  • Rotary
• Actuator
  • Motor Shaft Operator
• Ambient Temp. Range
  • UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
• Application
  • G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
• ARRA Compliant
  • Contact Manufacturer
• Base Unit of Measure
  • EA
• Buy American Compliant
  • Contact Manufacturer
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00783936220086
• Class Code
  • D25
• Country of Origin
  • US
• Description - Invoice
  • ALE MALE 3/8" DIA SHAFT ROTAR
• Dimensions
  • 6.5 in x 2.125 in x 1.687 in
• Each - Width
  • 2.125 in
• Freight Class Code
  • 06316009
• Frequency Rating
  • 50/60 Hz
• Gross Weight with Packaging
  • 0.68
• Harmonization Code
  • 8538908180
• Hazardous Rating(s)
  • Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
• Height
  • 1.687 in
• Image Actual Or Representative
  • R
• Lead Time
  • 10 wk
• Length
  • 6.5 in
• Master Pack Description
  • Each
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Returnable Indicator
  • Yes
• Series
  • GO
• Size
  • 6.5 in x 2.125 in x 1.687 in
• Special Features
  • Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more.Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use.UL Listed and CSA Certified
• Sub Class Code
  • D25D250
• Type
  • Specialty
• Width
  • 2.125 in
