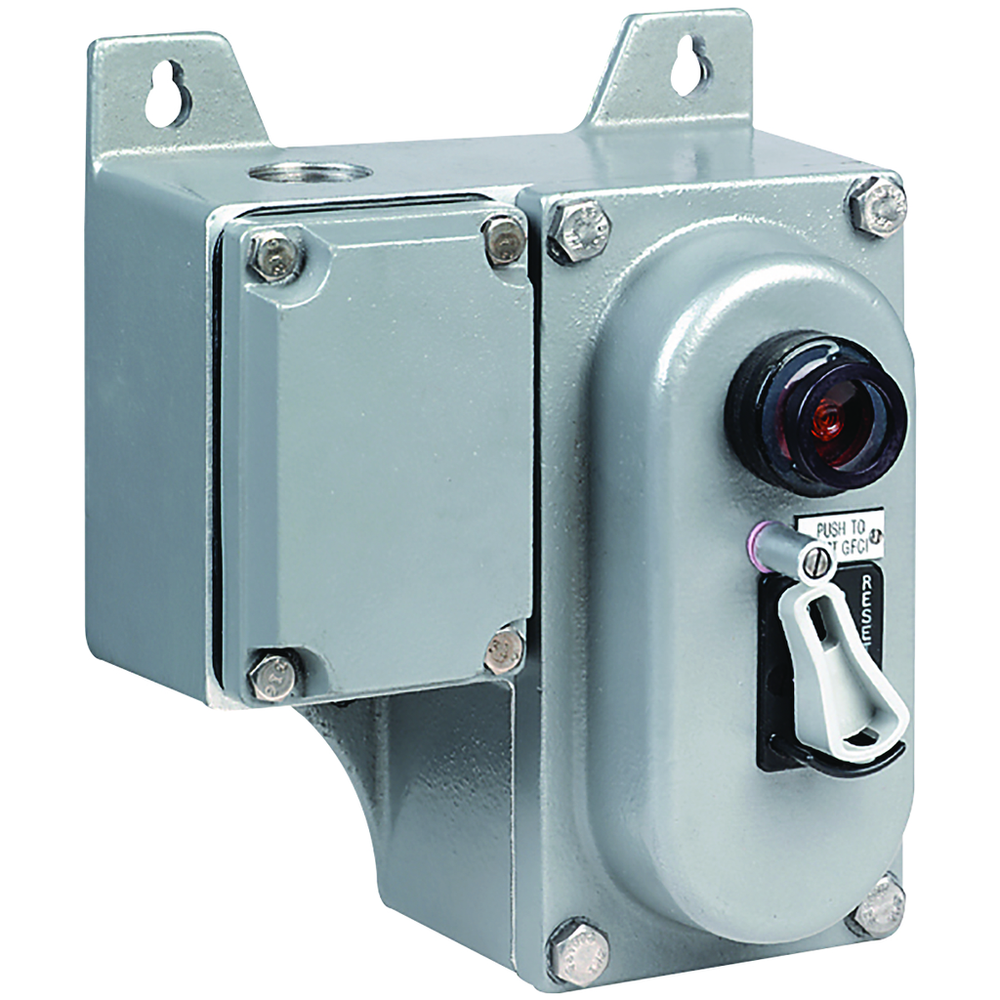

Killark GFCS30302
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
GFCS Series - Aluminum Feed-Thru 2-Pole Ground Fault Control Station -Factory Sealed - 30 Milliamp Trip - 30A Breaker - 120/240VAC - Hub Size1Inch NPTGFCS Series - Aluminum Feed-Thru 2-Pole Ground Fault Control Station -Factory Sealed - 30 Milliamp Trip - 30A Breaker - 120/240VAC - Hub Size1Inch NPT
Killark GFCS30302 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Action
- DP
- Actuator
- Miniature Circuit Breaker Operator with Reset
- Amperage Rating
- 30 A
- Application
- GFCS Series of ground fault control stations are used for the additional safety of personnel, and for equipment protection in remote areas.
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936112718
- Class Code
- D25
- Color
- Gray
- Country of Origin
- US
- CSA File Number
- LR061895-2
- Depth
- 8.5
- Description - Invoice
- 2P 30MILLIAMPTRIP 30BREAKER AM
- Each - Width
- 7.375 in
- Enclosure
- Bolted
- Enclosure Type
- Bolted
- Factory Sealed
- Factory Sealed
- Finish Type
- Powder-Coated Polyester Epoxy
- Freight Class Code
- 06316009
- Frequency Rating
- 60 Hz
- Gross Weight with Packaging
- 13
- Harmonization Code
- 8536200020
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Height
- 7.875 in
- Image Actual Or Representative
- R
- Indicator(s) Type
- Pilot Light
- Lead Time
- 30 wk
- Master Pack Description
- Each
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Mounting
- Wall
- Mounting Type
- Wall
- MSDS Flag
- No
- Nema Rating
- 3, 7(B, C, D), 9(E, F, G)
- Number of Poles
- 2
- Number Of Poles
- 2
- Number Of Wires
- 3
- Operating Temperature Celcius Max
- 40 Degree
- Order Multiple
- 1 EA
- Primary Voltage
- 240 VAC
- Reset Type
- Pushbutton on MCB Handle
- Returnable Indicator
- No
- Sensitivity
- 30mA
- Series
- GFCS
- Special Features
- Suitable for indoor/outdoor use to provide a degree of protection against rain, sleet, windblown dust and damage from external ice formations.
- Sub Class Code
- D25D251
- Type
- GFCI
- UL File Number
- E83969
- Weight
- 13 lb.
- Width
- 7.375 in
