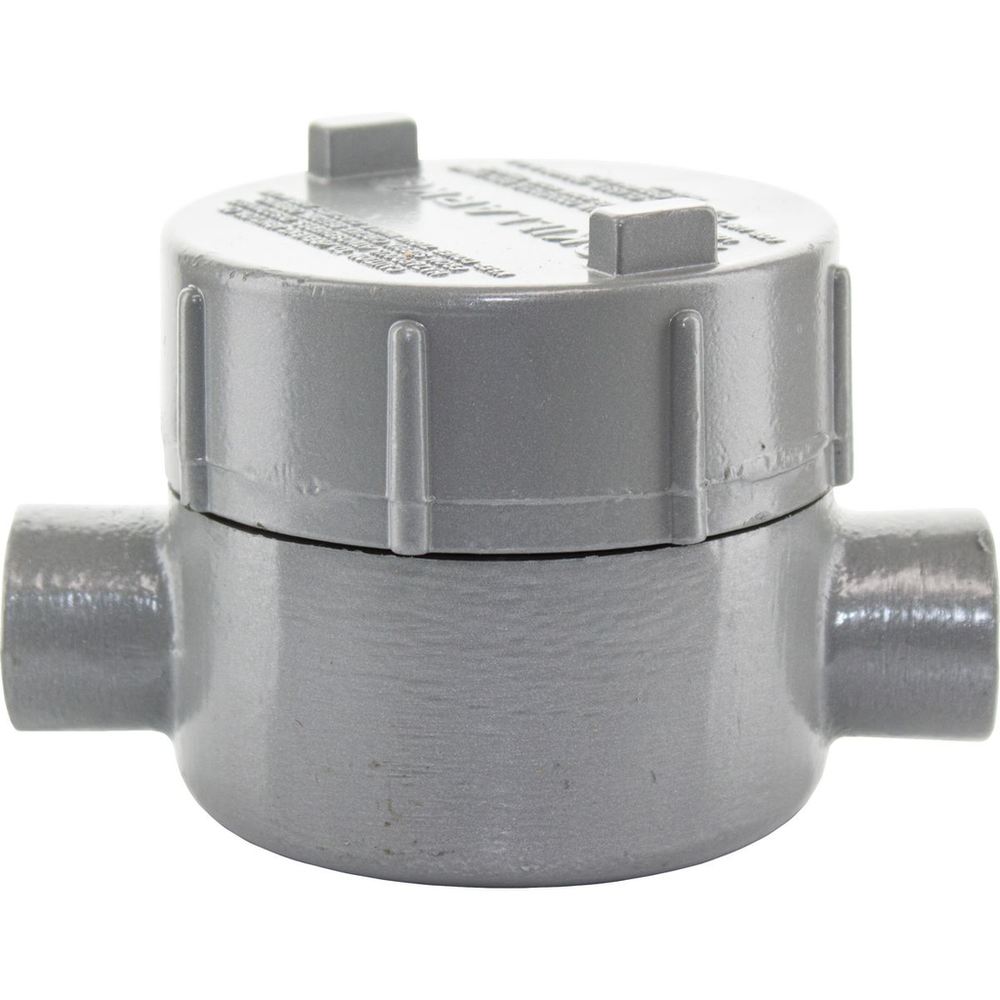

Killark GECCT-2-6TB

Certifications

• EU RoHS Indicator
  • Contact Manufacturer

Specifications

• Application
  • Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
• ARRA Compliant
  • Contact Manufacturer
• Base Unit of Measure
  • EA
• Buy American Compliant
  • Contact Manufacturer
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00783936210384
• Class Code
  • D30
• Color
  • Gray
• Country of Origin
  • US
• CSA File Number
  • LR11716
• Description - Invoice
  • GECCT-2 W/ 6 POINT TERMINAL
• Dimensions
  • 5.563 in x 4 in x 5.563 in
• Each - Width
  • 4.000 in
• Finish Type
  • Powder Epoxy Paint
• Freight Class Code
  • 06316009
• Gross Weight with Packaging
  • 2.5
• Harmonization Code
  • 8536904000
• Hazardous Rating(s)
  • Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
• Height
  • 5.563 in
• Hub Pattern
  • C
• Hub Size
  • 3/4"
• Image Actual Or Representative
  • R
• Lead Time
  • 30 wk
• Length
  • 5.563 in
• Master Pack Description
  • Each
• Material
  • Aluminum, Copper Free (less than 4/10 of 1%)
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Returnable Indicator
  • Yes
• Series
  • GE
• Size
  • 5.563 in x 4 in x 5.563 in
• Special Features
  • Water shedding cover-suitable for wet locations when mounted in upright position. External cover threads on body protecting conductors from damage during pulling. No pinching of conductors during cover installation. Taper threaded hubs to provide ground c
• Sub Class Code
  • D30D237
• Type
  • Outlet Body With Cover & Terminal Block
• UL File Number
  • E10514
• Width
  • 4.000 in
