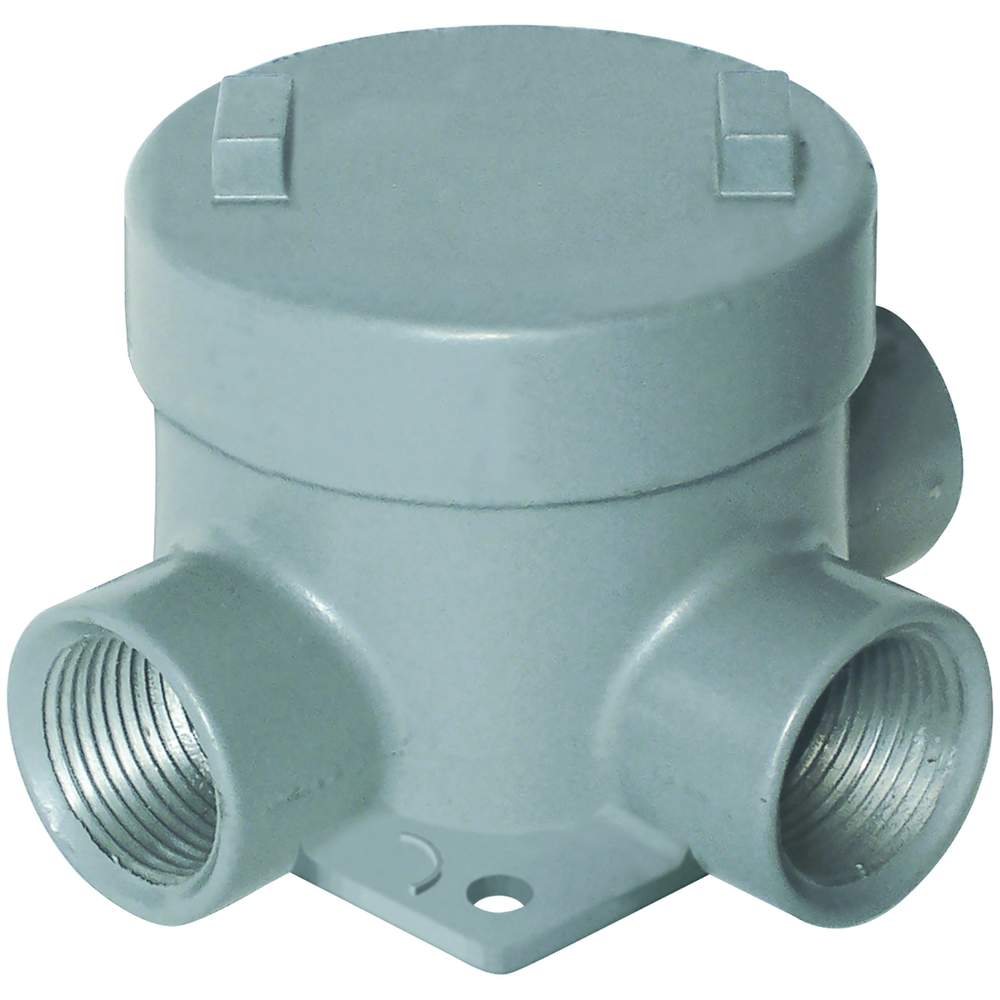

Killark GEBT-3

Certifications

• EU RoHS Indicator
  • Contact Manufacturer

Specifications

• Application
  • Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
• ARRA Compliant
  • Contact Manufacturer
• Base Unit of Measure
  • EA
• Buy American Compliant
  • Contact Manufacturer
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00783936114798
• Class Code
  • D30
• Color
  • Gray
• Country of Origin
  • MX
• CSA File Number
  • LR11716
• Description - Invoice
  • OUTLET BODY 1" AL T-TYPE
• Dimensions
  • 6.63 in x 6 in x 4.38 in
• Each - Width
  • 6.000 in
• Finish Type
  • Powder Epoxy Paint
• Freight Class Code
  • 06316009
• Gross Weight with Packaging
  • 3.4
• Harmonization Code
  • 7609000000
• Hazardous Rating(s)
  • Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
• Height
  • 4.38 in
• Hub Pattern
  • T
• Hub Size
  • 1"
• Image Actual Or Representative
  • R
• Lead Time
  • 49 wk
• Length
  • 6.63 in
• Master Pack Description
  • Each
• Material
  • Aluminum, Copper Free (less than 4/10 of 1%)
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Returnable Indicator
  • Yes
• Series
  • GE
• Size
  • 6.63 in x 6 in x 4.38 in
• Special Features
  • Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre
• Sub Class Code
  • D30D237
• Type
  • Outlet Body With Cover
• UL File Number
  • E10514
• Width
  • 6.000 in
