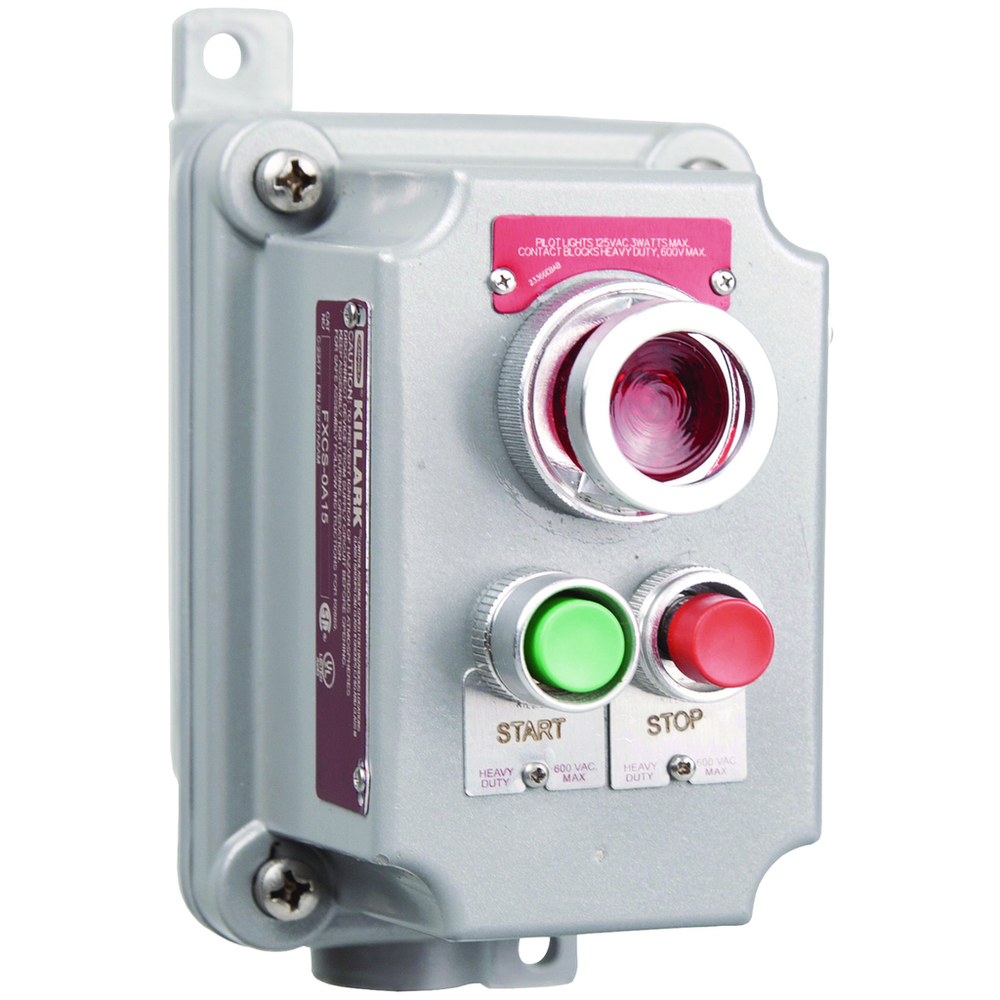

Killark FXCS-1A15
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
FXCS Momentary Contact, 2 Mini Push Button- 1 Pilot Light- Red Lens- Cover and Dead-End Box, 1/2" HubFXCS Momentary Contact, 2 Mini Push Button- 1 Pilot Light- Red Lens- Cover and Dead-End Box, 1/2" Hub
Killark FXCS-1A15 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Action
- Momentary
- Actuator
- Pilot Light & Double Pushbutton
- Ambient Temp. Range
- UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
- Amperage Rating
- 10 A
- Application
- SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
- ARRA Compliant
- Contact Manufacturer
- Back Box Type
- FXB
- Base Unit of Measure
- EA
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936200774
- Class Code
- D25
- Color
- Red-Green P.B. & Red Light
- Country of Origin
- US
- CSA File Number
- LR11714, LR11712
- Depth
- 5.38
- Description - Invoice
- BOX CVR 2PB 1PL 1/2" DEAD RL
- Dimensions
- 6.63 in x 6 in x 4.38 in
- Each - Width
- 6.000 in
- Factory Sealed
- Factory Sealed
- Freight Class Code
- 06316009
- Frequency Rating
- 50/60 Hz
- Gross Weight with Packaging
- 4.4
- Harmonization Code
- 8536509035
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Height
- 4.38 in
- Hub Pattern
- Dead-End
- Hub Size
- 1/2"
- Image Actual Or Representative
- R
- Lead Time
- 15 wk
- Length
- 6.63 in
- Master Pack Description
- Each
- MSDS Flag
- No
- Nema Rating
- 3
- Number of Poles
- 2
- Number Of Poles
- 2
- Order Multiple
- 1 EA
- Returnable Indicator
- Yes
- Series
- FXCS
- Size
- 6.63 in x 6 in x 4.38 in
- Special Features
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more.Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Sub Class Code
- D25D250
- Type
- Factory Sealed
- UL File Number
- E53360, E12379
- Width
- 6.000 in
