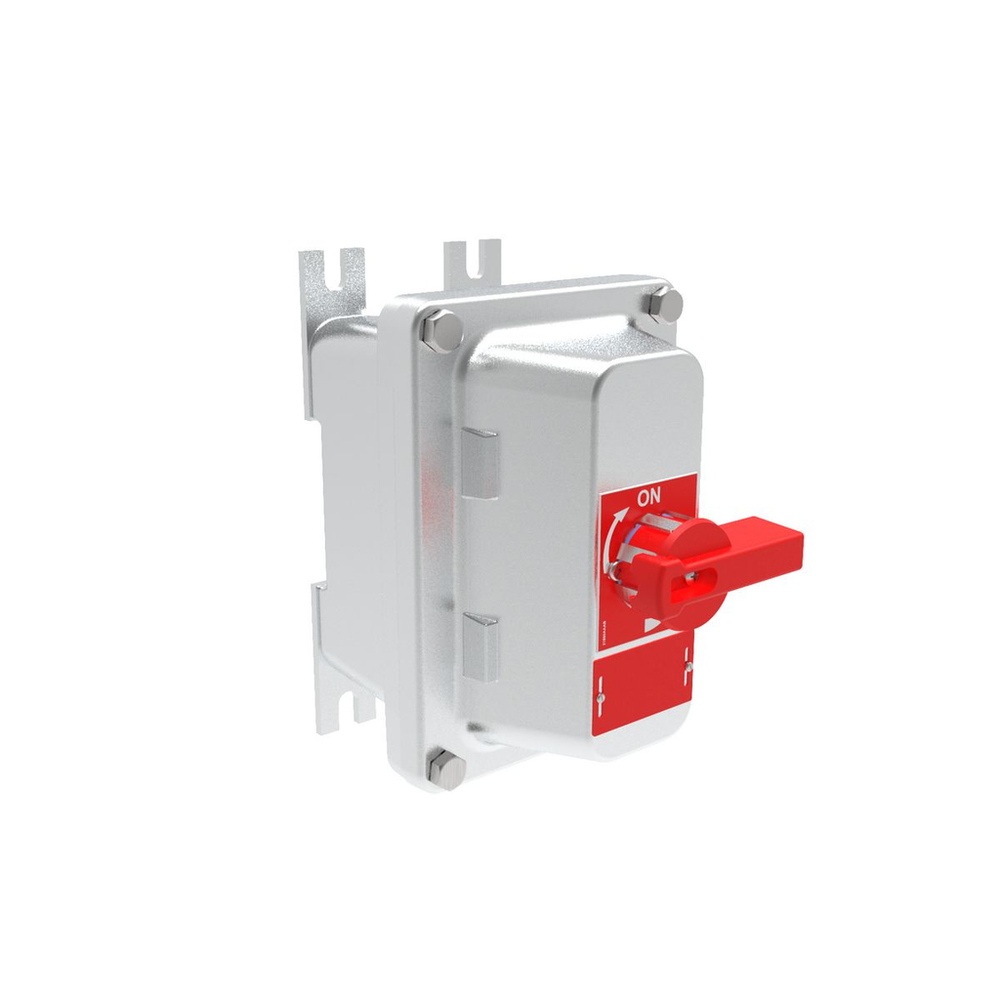

Killark B7NFD1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
B7NFD Series - Aluminum Feed-Thru Compact Non-Fused Disconnect Switch Enclosure - 30AB7NFD Series - Aluminum Feed-Thru Compact Non-Fused Disconnect Switch Enclosure - 30A
Killark B7NFD1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Application
- The PRISM B7 Series of non-fused disconnect switches are used: in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers, and flyings;outdoors or indoors in damp, wet, and dirty locations;in areas where frequent washdowns, heavy rain, or water spray routinely occurs.
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936009780
- Class Code
- D25
- Country of Origin
- US
- CSA File Number
- LR11714
- Depth
- 6.3125
- Description - Invoice
- NONFUSED DISC ENCLOSURE ONLY 30A
- Each - Width
- 7.500 in
- Enclosure
- Bolted
- Enclosure Type
- Bolted
- Freight Class Code
- 06316011
- Frequency Rating
- 60 Hz
- Gross Weight with Packaging
- 11.05
- Harmonization Code
- 8538100000
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Height
- 8.06 in
- Image Actual Or Representative
- R
- Lead Time
- 15 wk
- Master Pack Description
- Each
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Mounting
- Wall
- Mounting Type
- Wall
- MSDS Flag
- No
- Nema Rating
- 3, 4, 4X, 7(B, C, D), 9(E, F, G)
- NEMA Rating
- 3, 4, 4X, 7(B, C, D), 9(E, F, G)
- Number of Poles
- 3
- Number Of Poles
- 3
- Number Of Wires
- 4
- Operating Temperature Celcius Max
- 40 Degree
- Order Multiple
- 1 EA
- Primary Voltage
- 600 VAC
- Returnable Indicator
- Yes
- Series
- B7NFD
- Special Features
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
- Sub Class Code
- D25D251
- Type
- Non-Fused Disconnect
- Weight
- 11 lb.
- Width
- 7.500 in
