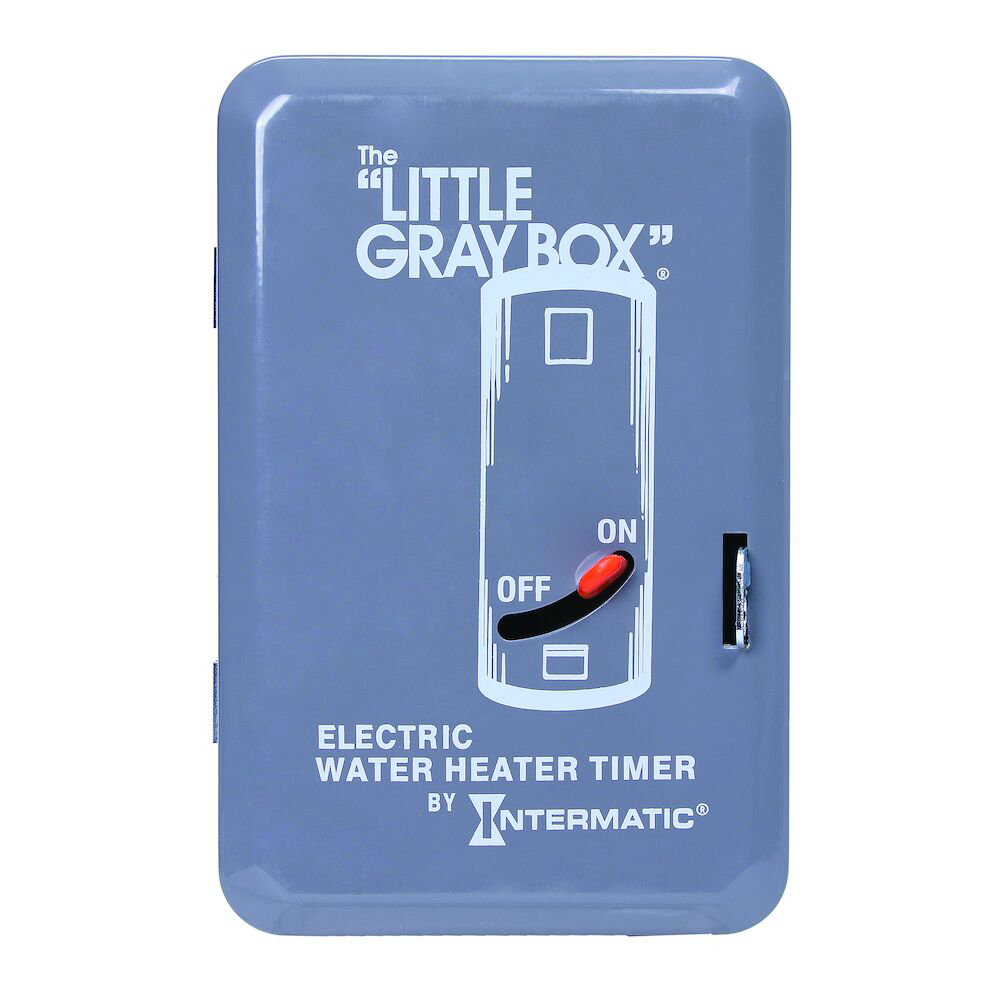

Intermatic WH40
Description
Intermatic WH40 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Knockout
- Knockout Dimensions Back
- (1) combination 1/2" - 3/4"
- Knockout Dimensions Bottom
- (2) combination 1/2" - 3/4"
- Knockout Dimensions Left
- (1) combination 1/2" - 3/4"
Load Ratings
- Resistive Load Ratings Ranges
- 40 A Max, 208-277 VAC, 60 Hz
Specifications
- Amps Per Pole
- 40 A
- Application Compatibilities
- Electric Water Heater
- Applications
- Agriculture Feeders; Greenhouse Misting Control; Water Heater Control
- Clock Motor Voltage
- 208/277 VAC, 60 Hz
- Color
- Gray
- Country of Origin
- Mexico
- CSA Certification
- cCSAus
- Enclosure Type
- Indoor type 1 metal
- Has Manual Override CVL
- Yes
- Has Override Switch CVL
- Yes
- Input Voltage Ranges
- 208-277 VAC, 60 Hz
- Lifecycle
- Production
- Market
- Commercial; Residential
- Maximum On Off Operations
- 12
- Mechanism Type
- Analog/Mechanical
- Minimum On Off Time
- 1 hour
- Number Of Circuits
- 1
- Number Of Trippers Included
- 2 ON/2 OFF
- Operating Temperature Max
- 54°F
- 130°C
- Operating Temperature Min
- -40°C
- -40°F
- Operation Mode
- 24 hour
- Packaging Applications
- Residential; Institutional; Industrial; Commercial; Military Facilities; Schools
- Power Consumption Max W
- 3 W
- Product Depth
- 3 7/16 in; 87.3 mm
- Product Height
- 7 7/8 in; 200 mm
- Product Width
- 5 1/8 in; 130.2 mm
- Solutions
- Machinery & Pumps; Energy Savings
- Switch Type
- DPST
- Timing Interval
- 1 hr
- UL Cerfication File Number
- UL917
- UL Certification
- cULus
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 288
- Warranty Period
- 1-Year limited
- Watts Resistive
- 10000
- Wire Size Max
- #8 AWG
- Wire Size Min
- #14 AWG
- Wiring Option
- Terminals
